DAC60504BRTER - Texas Instruments

Description: True 12-Bit, 4-channel, SPI, Vout DAC in tiny QFN package with precision internal reference

Download DAC60504BRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

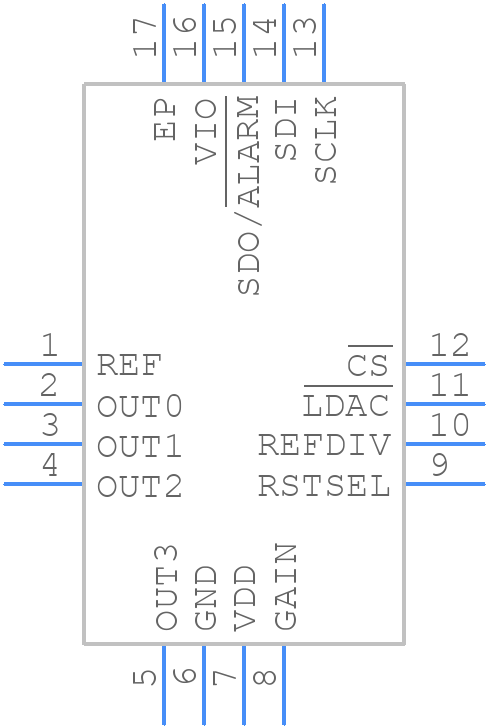

DAC60504BRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC60504BRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom
3D Models
DAC60504BRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom

DAC60504BRTER Details

  • Manufacturer Part Number:

    DAC60504BRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    2 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC60504BRTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time of the DAC60504BRTER is typically around 10-15 μs. To ensure accurate readings, it's recommended to add a settling time delay of at least 20-30 μs after updating the DAC register before taking a measurement.
  • The DAC60504BRTER's performance is affected by temperature, with a typical temperature coefficient of ±1 ppm/°C for the output voltage. This means that the output voltage may drift by ±1 mV for every 1°C change in temperature. It's essential to consider this in your design and provide adequate temperature compensation if necessary.
  • Yes, the DAC60504BRTER can be used in a ratiometric configuration, where the reference voltage (VREF) is also used as the supply voltage (VDD). However, this requires careful consideration of the power supply design and noise reduction techniques to ensure accurate performance.
  • To minimize noise and glitches, it's recommended to use a low-pass filter on the output, such as a 1 kΩ resistor and a 10 nF capacitor. Additionally, ensure that the digital inputs are properly terminated and that the device is operated within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC60504BRTER Overview

Use the download button to access the DAC60504BRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
