The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage settling time of the DAC60508 is dependent on the output capacitance and the desired settling accuracy. A general guideline is to allow at least 10-15 μs for the output voltage to settle to within 1 LSB of the final value.
The DAC60508's performance is affected by temperature, with changes in gain, offset, and linearity. The device is specified to operate over a temperature range of -40°C to 125°C, and the user should consult the datasheet for specific temperature-related performance characteristics.
To ensure accurate output voltage levels, the user should ensure that the reference voltage (VREF) is accurate and stable, and that the output load is within the specified range. Additionally, the user should consider the effects of temperature, noise, and output capacitance on the output voltage accuracy.
The recommended layout and routing for the DAC60508 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing noise and interference. The user should also consider the effects of thermal gradients and electromagnetic interference on the device's performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC60508MCRTET Overview

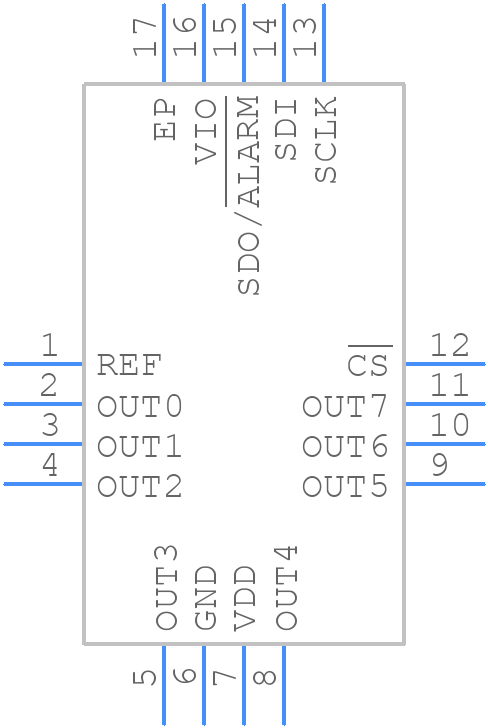

Use the download button to access the DAC60508MCRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60,
or try a keyword search, such as Digital to Analog Converters
