The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals (e.g., SCLK, SDIN, and SYNC). This ensures proper device operation and prevents potential latch-up conditions.
The DAC60508 has a rail-to-rail output stage, but it's not guaranteed to swing all the way to the supply rails. To ensure maximum output range, use an external op-amp or buffer to amplify and condition the output signal, if necessary.
The maximum clock frequency for the DAC60508 is 50 MHz. However, the actual achievable clock frequency may be limited by the specific application, PCB layout, and noise conditions. It's recommended to consult the datasheet and perform thorough testing to determine the optimal clock frequency for your design.
To achieve a bipolar output configuration, you can use an external op-amp or inverter to invert the output signal. Alternatively, you can use a voltage divider or a resistive network to shift the output voltage range. Consult the datasheet and application notes for more information on bipolar output configurations.
The DAC60508's performance is affected by temperature, with changes in offset voltage, gain error, and linearity. The device is specified to operate over a temperature range of -40°C to 125°C. Consult the datasheet for detailed information on temperature-related specifications and consider using temperature compensation techniques in your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC60508MCYZFR Overview

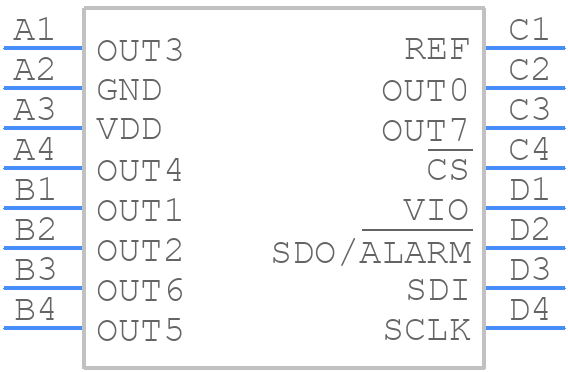

Use the download button to access the DAC60508MCYZFR schematic symbol, PCB footprint, and 3D model.
