The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
The DAC60508 has an output voltage range of 0 to VREF. To ensure accurate output voltages, it's recommended to use an external voltage reference (VREF) that is within the specified range of 2.7V to 5.5V. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
The settling time of the DAC60508 is typically around 10μs. This means that the output voltage may take up to 10μs to settle to its final value after a code change. System designers should ensure that their system can accommodate this settling time to avoid errors or inaccuracies in their application.
To implement a voltage output range other than 0 to VREF, you can use an external amplifier or resistive divider network to scale the output voltage. For example, to get a 0 to 10V output range, you can use a non-inverting amplifier with a gain of 2. Alternatively, you can use a resistive divider network to scale the output voltage to the desired range.
The DAC60508's performance is affected by temperature, with a typical temperature coefficient of ±1ppm/°C. To compensate for temperature effects, you can use an external temperature sensor and adjust the DAC's output voltage accordingly. Alternatively, you can use a temperature-compensated voltage reference (VREF) to minimize temperature-related errors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC60508MRTET Overview

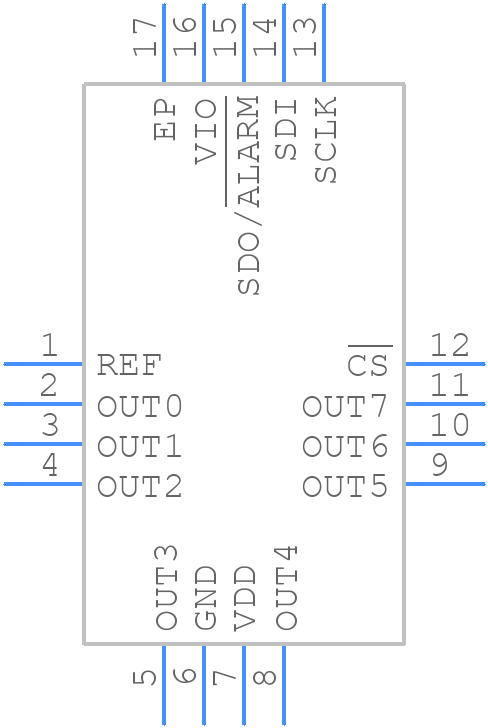

Use the download button to access the DAC60508MRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60,
or try a keyword search, such as Digital to Analog Converters
