The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up or damage.
The DAC60508 has an output voltage range of 0 to VREF. To ensure accurate output, it's essential to select a suitable reference voltage (VREF) and adjust the output voltage range accordingly. Additionally, consider using an output buffer or amplifier if the output current or voltage requirements exceed the DAC's capabilities.
The DAC60508's performance is affected by temperature, with changes in offset voltage, gain error, and linearity. Ensure proper thermal management and consider using temperature compensation or calibration techniques to maintain accuracy over the desired temperature range.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding sensitive signals. Additionally, consider using a low-noise voltage reference and a high-quality clock source.
The DAC60508 supports clock frequencies up to 50 MHz. However, the actual clock frequency may be limited by the specific application, PCB layout, and noise considerations. Ensure that the clock frequency is within the recommended range to maintain accurate and reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC60508MYZFR Overview

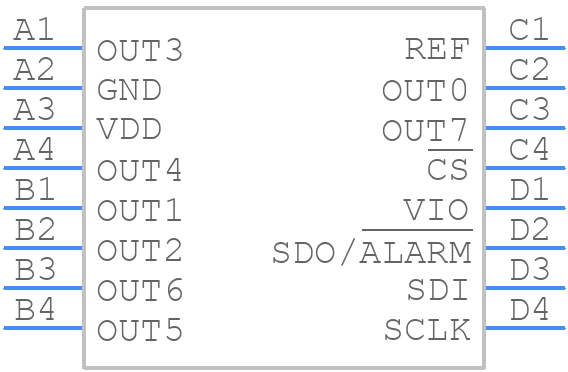

Use the download button to access the DAC60508MYZFR schematic symbol, PCB footprint, and 3D model.
