Part Image

DAC60508ZCYZFR - Texas Instruments

Description: True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference

Download DAC60508ZCYZFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

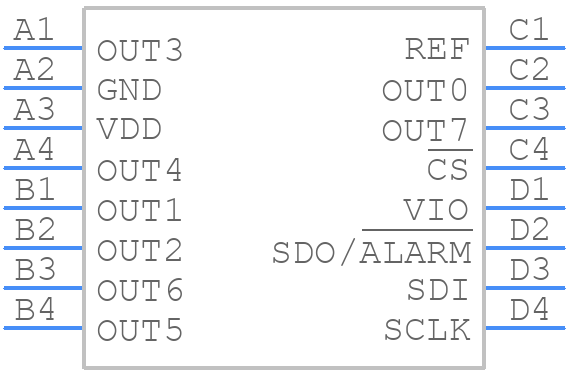

Symbol
DAC60508ZCYZFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC60508ZCYZFR - Texas Instruments PCB footprint - BGA - BGA - YZF0016
click to zoom
3D Models
DAC60508ZCYZFR - Texas Instruments - 3D model - BGA - YZF0016
click to zoom

DAC60508ZCYZFR Details

  • Manufacturer Part Number:

    DAC60508ZCYZFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-08-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.39 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.625 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.39 mm

DAC60508ZCYZFR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up or damage.
  • The DAC60508 has a rail-to-rail output stage, but the output voltage range is limited to VDD - 0.1V to VDD + 0.1V. Ensure that the output voltage is within this range to avoid distortion and ensure accurate performance.
  • The DAC60508's performance is affected by temperature, with a typical temperature coefficient of ±1 ppm/°C for the DAC gain error. Ensure that the device is operated within the specified temperature range (−40°C to 125°C) for optimal performance.
  • To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using bypass capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-noise voltage reference and a quiet power supply.
  • The recommended clock frequency for the DAC60508 is up to 50 MHz, but it can operate at higher frequencies with reduced performance. Ensure that the clock frequency is within the specified range for optimal performance and to avoid potential issues with clock jitter and noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC60508ZCYZFR Overview

Use the download button to access the DAC60508ZCYZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
