DAC60508ZCYZFT - Texas Instruments

Description: Digital to Analog Converters - DAC True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference 16-DSBGA -40 to 125

Download DAC60508ZCYZFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

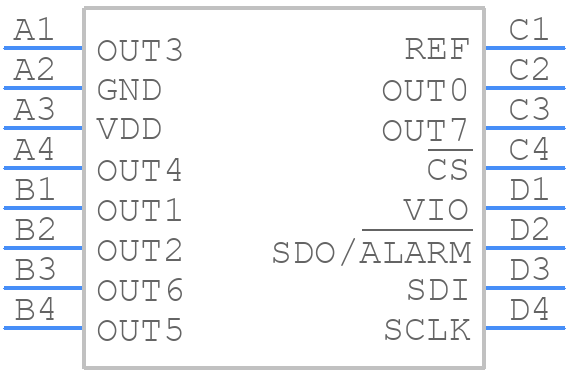

DAC60508ZCYZFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC60508ZCYZFT - Texas Instruments PCB footprint - BGA - BGA - YZF0016
click to zoom
3D Models
DAC60508ZCYZFT - Texas Instruments - 3D model - BGA - YZF0016
click to zoom

DAC60508ZCYZFT Details

  • Manufacturer Part Number:

    DAC60508ZCYZFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-08-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.39 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.625 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.39 mm

DAC60508ZCYZFT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage range of the DAC60508 is dependent on the VREF input voltage. The output voltage range is 0 to VREF, so ensure that VREF is set to the desired maximum output voltage. Additionally, consider the output buffer amplifier's gain and offset when designing the output stage.
  • The settling time of the DAC60508 is approximately 10 μs for a full-scale output change. This means that the output voltage may take up to 10 μs to stabilize after a code change. Ensure that your system design takes this settling time into account, especially in applications requiring high-speed data conversion.
  • To minimize noise and glitches, ensure that the digital inputs are properly synchronized and that the clock signal is clean and stable. Additionally, consider using a low-pass filter on the output stage to reduce high-frequency noise. Proper PCB layout and decoupling of the power supplies can also help reduce noise and glitches.
  • The maximum clock frequency supported by the DAC60508 is 40 MHz. Ensure that your system design does not exceed this clock frequency to prevent potential errors and ensure reliable operation.
