The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supply (DVDD). This ensures proper device operation and prevents latch-up.
To ensure accurate voltage output, it's essential to use a high-precision voltage reference, such as the Texas Instruments REF5025. Additionally, ensure that the output voltage is buffered with an op-amp, like the OPA2824, to minimize output impedance and improve load regulation.
The maximum output current of the DAC60508 is 5 mA. Exceeding this current may cause device damage or affect output accuracy. If higher output currents are required, consider using an external amplifier or buffer.
The SCLK and SDIN pins require careful handling to ensure reliable data transfer. Use a clock frequency between 10 kHz and 50 MHz, and ensure that the SDIN pin is driven with a low-impedance output stage to minimize signal degradation.
The internal voltage reference is used to generate the DAC's output voltage. While it can be bypassed, it's not recommended, as this may affect the device's overall performance and accuracy. If an external reference is required, use a high-precision voltage reference, such as the REF5025, and follow the recommended connection diagram.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC60508ZYZFT Overview

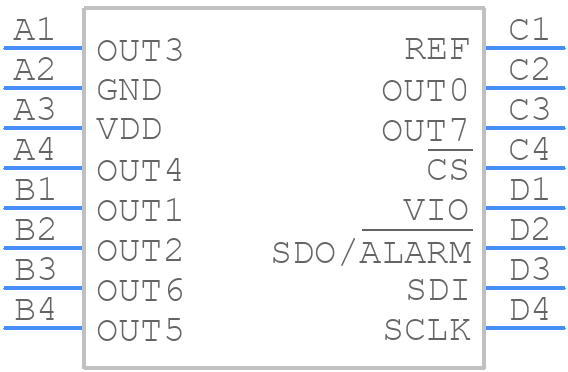

Use the download button to access the DAC60508ZYZFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60,
or try a keyword search, such as Digital to Analog Converters
