DAC63202RTER - Texas Instruments

Description: Digital to Analog Converters - DAC Two-channel, 12-bit, input- and output-voltage smart DAC with IC, SPI and high impedance out during

Download DAC63202RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

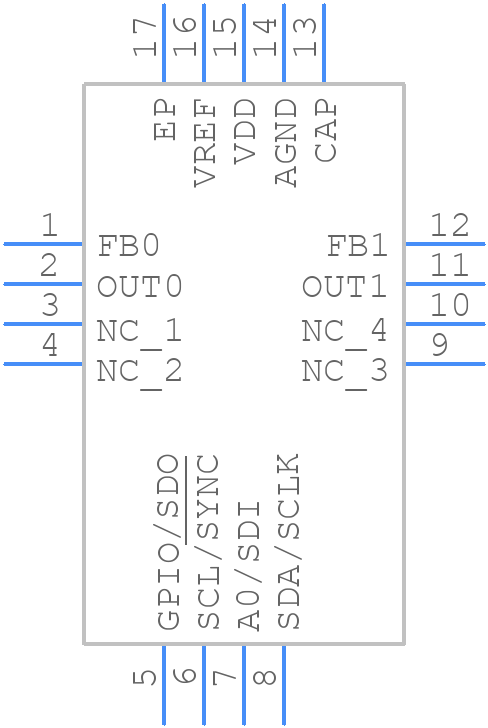

DAC63202RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC63202RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DAC63202RTERaa
click to zoom
3D Models
DAC63202RTER - Texas Instruments - 3D model - Quad Flat No-Lead - DAC63202RTERaa
click to zoom

DAC63202RTER Details

  • Manufacturer Part Number:

    DAC63202RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.09765%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DAC63202RTER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the DAC63202RTEREVM evaluation module user's guide, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • To achieve a bipolar output, you can use an external amplifier or op-amp to shift and scale the output voltage of the DAC63202RTER. Texas Instruments provides application notes and reference designs that demonstrate how to do this.
  • The maximum update rate of the DAC63202RTER is 2.5 MSPS. To achieve this rate, you need to use the SPI interface and ensure that the clock frequency is at least 10 MHz. Additionally, you should minimize the number of bytes transferred per conversion and use the internal clock mode.
  • Texas Instruments recommends using a low-noise power supply, decoupling capacitors, and a solid ground plane to minimize noise and ensure reliable operation. The DAC63202RTER datasheet provides guidelines for power supply decoupling and layout.
  • The DAC63202RTER's performance is affected by temperature, with changes in gain and offset. To compensate for temperature effects, you can use an external temperature sensor and adjust the DAC output accordingly. Texas Instruments provides application notes and reference designs that demonstrate temperature compensation techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC63202RTER Overview

Use the download button to access the DAC63202RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC63, or try a keyword search, such as Digital to Analog Converters
