DAC6574IDGSG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - DAC6574IDGSG4 - Digital to Analogue Converter, 10 bit, 188 kSPS, I2C, Serial, 2.7V to 5.5V, VSSOP, 10 Pins

Download DAC6574IDGSG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

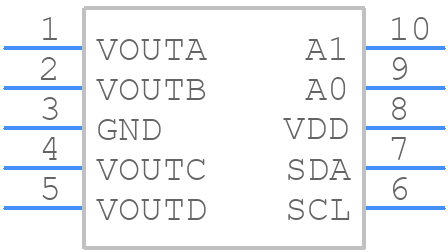

DAC6574IDGSG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC6574IDGSG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
DAC6574IDGSG4 - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

DAC6574IDGSG4 Details

  • Manufacturer Part Number:

    DAC6574IDGSG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.188 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC6574IDGSG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the digital supply (VDD) first, followed by the analog supply (AVDD). This ensures that the digital circuitry is powered up before the analog circuitry, which helps to prevent any unwanted analog output voltages during power-up.
  • To ensure accurate output voltages, it is recommended to use a high-precision voltage reference (VREF) and to keep the analog supply (AVDD) and voltage reference (VREF) noise-free. Additionally, the output voltage can be calibrated by adjusting the offset and gain registers.
  • The maximum output current of the DAC6574 is 10 mA. However, it is recommended to limit the output current to 5 mA or less to ensure accurate output voltages and to prevent overheating of the device.
  • The DAC6574 can be interfaced with a microcontroller using a serial interface such as SPI or I2C. The microcontroller can send commands and data to the DAC6574 to configure the device and update the output voltage. The DAC6574 also has a built-in FIFO buffer that can store up to 32 data words, allowing for fast and efficient data transfer.
  • The CLR pin is an active-low clear pin that can be used to reset the DAC6574 to its power-up state. When the CLR pin is pulled low, the device resets and the output voltage returns to its default state. The CLR pin can be used to synchronize multiple DAC6574 devices or to reset the device in case of an error.
