Texas Instruments provides a recommended layout and routing guide in the DAC6578SPWR evaluation module user's guide (SLAU445). It's essential to follow this guide to minimize noise and ensure optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and loops.
The DAC6578SPWR has a power-on reset (POR) and brown-out reset (BOR) feature that can be configured using the POR/BOR pin. To handle these features, ensure that the POR/BOR pin is properly connected to a voltage source, and consider adding a capacitor to filter out noise. Additionally, ensure that your system design can handle the reset timing and voltage thresholds specified in the datasheet.
Calibration of the DAC6578SPWR involves adjusting the internal gain and offset to achieve optimal performance. Texas Instruments provides a calibration procedure in the datasheet, which involves applying a known input voltage and measuring the output voltage. The gain and offset can then be adjusted using the internal registers. It's essential to follow the recommended calibration procedure to ensure optimal performance.
To ensure data integrity and prevent data corruption when using the DAC6578SPWR's SPI interface, ensure that the clock frequency is within the recommended range, and use a valid clock polarity and phase. Additionally, use a valid chip select signal, and ensure that the data is transmitted in the correct format. Consider using error-checking mechanisms, such as CRC or checksum, to detect data corruption.
The DAC6578SPWR has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure that the device is operated within the recommended temperature range, and consider using thermal management techniques, such as heat sinks or thermal pads. Additionally, ensure that the device is properly soldered and that the PCB design takes into account thermal expansion and contraction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC6578SPWR Overview

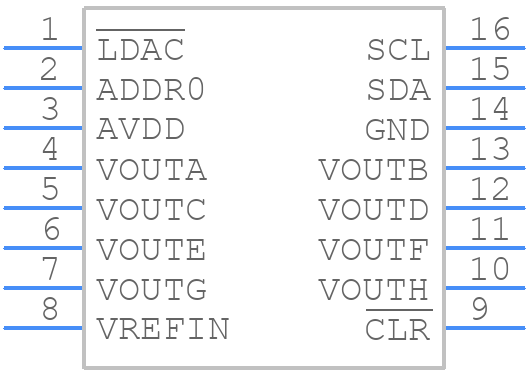

Use the download button to access the DAC6578SPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC65,
or try a keyword search, such as Digital to Analog Converters
