Texas Instruments recommends a star-ground topology, with the DAC's GND pin connected to the analog ground plane. Keep the analog and digital grounds separate, and use a single-point ground connection to the PCB's ground plane. Route digital signals away from analog signals, and use shielding or guard rings to minimize noise coupling.
The DAC6578SRGET has a rail-to-rail output stage, but the output voltage range can be adjusted using the VREF pin. You can set the output voltage range by applying a reference voltage to the VREF pin, which can be between 1.2V and 5.5V. The output voltage will be scaled accordingly, with a gain of 1.2V/V.
Texas Instruments recommends powering up the DAC6578SRGET in the following sequence: 1) Apply VCC, 2) Apply VREF, and 3) Apply the digital inputs (SCLK, SDIN, and SYNC). This sequence ensures that the DAC is properly initialized and configured before operation.
A simple RC low-pass filter can be used to remove noise and aliasing from the DAC's output. A recommended filter configuration is a 2nd-order Butterworth filter with a cutoff frequency of 10-20 times the Nyquist frequency. You can also use a higher-order filter or an active filter for better performance.
The maximum clock frequency for the DAC6578SRGET is 40MHz. Operating the DAC at higher clock frequencies can lead to increased noise, distortion, and power consumption. It's recommended to operate the DAC at a clock frequency that is 2-5 times the desired output data rate to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC6578SRGET Overview

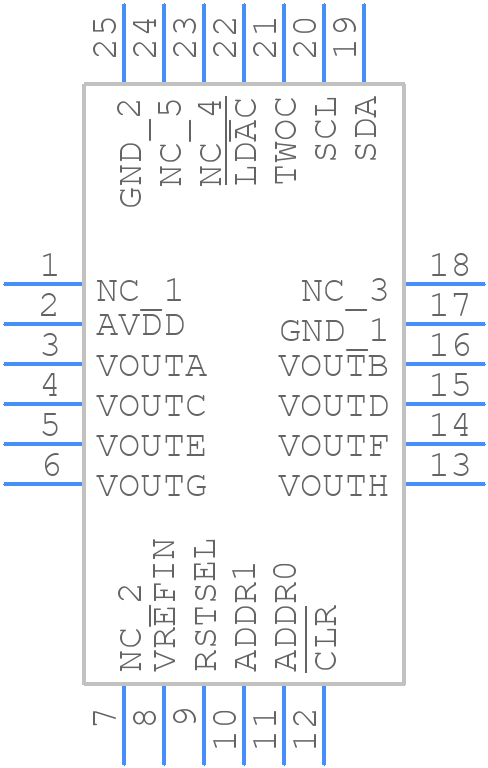

Use the download button to access the DAC6578SRGET schematic symbol, PCB footprint, and 3D model.
