Description:Digital to Analog Converters - DAC True 14-Bit, 1-channel, SPI/I2C, Vout DAC in tiny SON package with precision internal reference 8-WSON -40 to 125
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up or damage.
The DAC70501 has an output voltage range of 0 to VREF. To ensure accurate output, it's essential to select a suitable reference voltage (VREF) that matches the desired output range. Additionally, consider the output impedance and load requirements to maintain accuracy.
The maximum update rate of the DAC70501 is 1 MSPS (million samples per second). However, this rate may vary depending on the specific application, clock frequency, and digital interface used.
To achieve glitch-free output, use the DAC70501's built-in glitch filter or implement an external filter. Additionally, ensure that the digital input data is properly synchronized with the clock signal, and consider using a deglitching circuit or a low-pass filter to further reduce output transients.
The DAC70501's performance is affected by temperature, with changes in output voltage, gain error, and offset voltage. Ensure that the device operates within the specified temperature range (-40°C to 125°C) and consider using temperature compensation or calibration techniques to maintain accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70501ZDQFT Overview

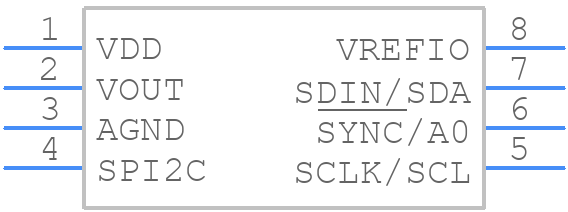

Use the download button to access the DAC70501ZDQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
