The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage settling time can be minimized by using a slew-rate limited output stage or by adding an external RC filter to the output. Additionally, the device's internal settling time can be reduced by using a faster clock frequency or by using the device's built-in output settling time optimization feature.
The maximum output current capability of the DAC70508 is 25 mA per channel. However, this can be limited by the output impedance of the device, which is typically around 0.5 ohms. It's recommended to use an external buffer amplifier if higher output currents are required.
To ensure accurate output voltage levels when using an external reference voltage, it's recommended to use a low-noise, low-drift reference voltage source and to decouple the reference input pin with a capacitor to reduce noise and ripple. Additionally, the reference voltage should be within the specified range of 1.2 V to 5.5 V.
To minimize noise and EMI, it's recommended to follow a star-grounding layout, keep the analog and digital signal traces separate, and use a solid ground plane. Additionally, the device's power supply pins should be decoupled with capacitors and the output pins should be routed away from the digital signal traces.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70508MRTET Overview

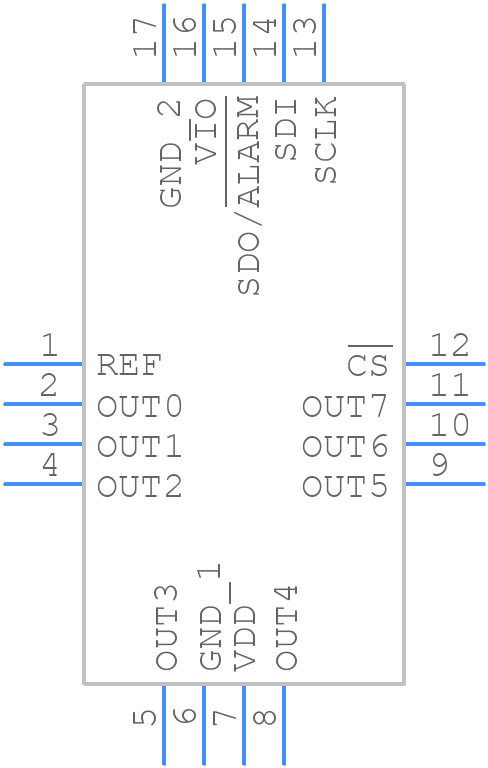

Use the download button to access the DAC70508MRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
