Description:Digital to Analog Converters - DAC True 14-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference 16-DSBGA -40 to 125
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals (e.g., SCLK, SDIN, and SYNC). This ensures proper device operation and prevents potential latch-up conditions.
The DAC70508 has a rail-to-rail output stage, but it's essential to ensure that the output voltage range is within the specified range (VOUT = VREF × (D/4096), where D is the digital code) to maintain linearity and accuracy. Additionally, consider the output impedance and load requirements to ensure proper signal integrity.
The SYNC pin is used to synchronize the data transfer between the DAC70508 and the microcontroller. It's an active-low input that, when low, allows the DAC to latch the input data. The SYNC pin should be driven low for at least one clock cycle to ensure proper data transfer.
To achieve a bipolar output configuration, you need to use an external amplifier and resistive network to shift the output voltage range. Texas Instruments provides a reference design and application notes (e.g., SLAA544) that outline the necessary circuitry and calculations for a bipolar output configuration.
The DAC70508's performance is affected by temperature, with changes in offset voltage, gain error, and linearity. The device is specified to operate over a temperature range of -40°C to 125°C. It's essential to consider temperature coefficients and compensation techniques to maintain accuracy and performance over the desired operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70508MYZFT Overview

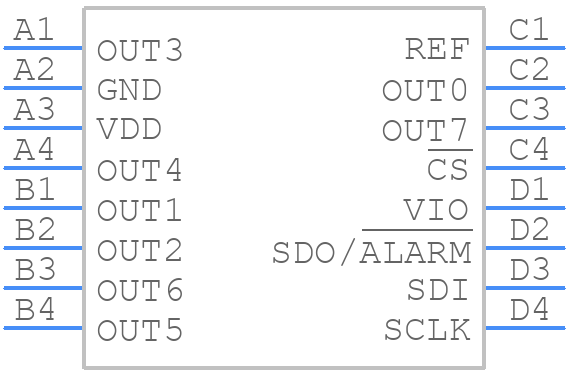

Use the download button to access the DAC70508MYZFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
