DAC71408RHAT - Texas Instruments

Description: 8-channel 14-bit high-voltage-output DAC with integrated internal reference

Download DAC71408RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

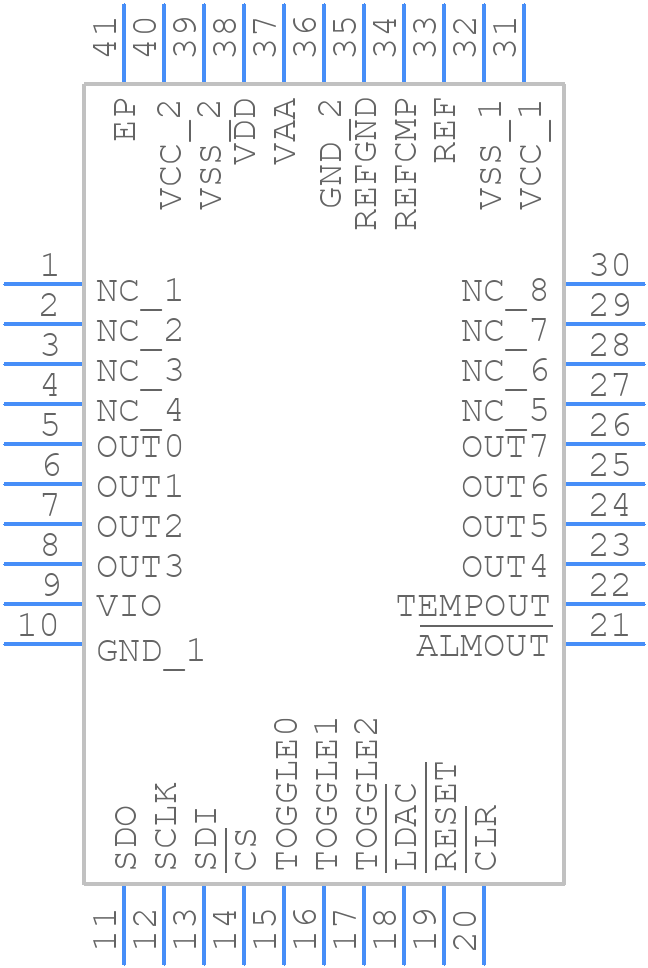

DAC71408RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC71408RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040C
click to zoom
3D Models
DAC71408RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040C
click to zoom

DAC71408RHAT Details

  • Manufacturer Part Number:

    DAC71408RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    20 V

  • Analog Output Voltage-Min:

    -20 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    12 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DAC71408RHAT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
  • The output voltage range of the DAC71408RHAT is dependent on the reference voltage (VREF) and the gain setting. Ensure that the output voltage range is within the specified limits to avoid saturation or clipping.
  • Temperature affects the DAC71408RHAT's performance, particularly the output voltage accuracy and linearity. Ensure that the device operates within the specified temperature range (-40°C to 125°C) and consider temperature compensation if necessary.
  • To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors. Additionally, consider using a low-noise power supply and shielding the device.
  • Keep analog and digital signals separate, use short and direct traces, and avoid crossing analog and digital signals. Use a star-ground configuration and place decoupling capacitors close to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC71408RHAT Overview

Use the download button to access the DAC71408RHAT schematic symbol, PCB footprint, and 3D model.
