DAC715UB - Texas Instruments

Description: 16-Bit Digital-to-Analog Converter with 16-Bit Bus Interface

Download DAC715UB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

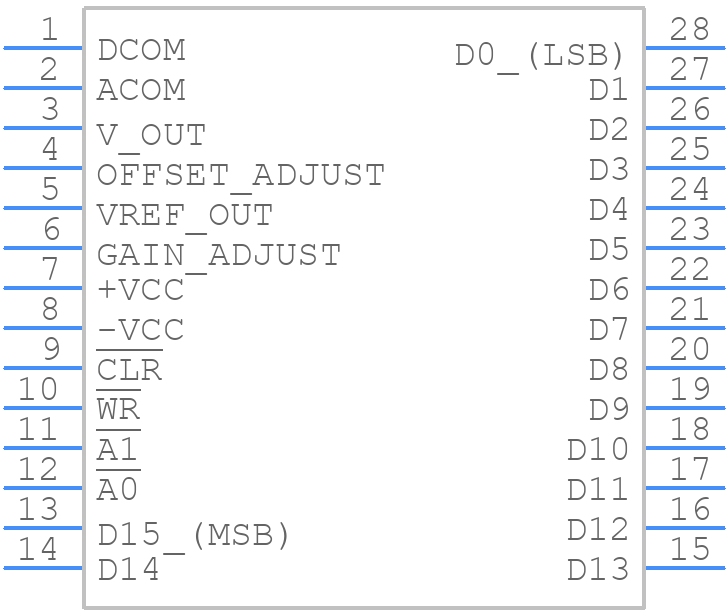

DAC715UB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC715UB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
DAC715UB - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

DAC715UB Details

  • Manufacturer Part Number:

    DAC715UB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DAC715UB Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC715UB is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to design your circuit to stay within this limit to avoid damaging the device.
  • To ensure monotonicity, make sure to use a clock frequency of at least 10 MHz and a data transfer rate of at least 20 Mbps. Additionally, use a stable and low-noise power supply, and ensure that the output capacitor is properly sized to filter out noise.
  • For optimal performance, keep the analog and digital grounds separate, and use a solid ground plane to reduce noise. Route the analog output traces away from digital signals, and use a shielded cable for the output signal. Also, place the output capacitor close to the DAC output pin.
  • The POR and BOR features are enabled by default. To handle them, ensure that your power supply is stable and within the recommended voltage range. You can also use external circuitry to detect and respond to POR and BOR events, such as resetting the device or triggering an interrupt.
  • The recommended operating temperature range for the DAC715UB is -40°C to 105°C. However, the device can operate up to 125°C with reduced performance. Make sure to derate the device's performance accordingly if you plan to operate it at higher temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC715UB Overview

Use the download button to access the DAC715UB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC71, or try a keyword search, such as Digital to Analog Converters
