The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up correctly.
The DAC716PB has a rail-to-rail output stage, but it's not guaranteed to swing all the way to the supply rails. To ensure maximum output voltage range, use an external op-amp to buffer the output and provide additional gain if needed.
The DAC716PB's performance is affected by temperature, with changes in offset voltage, gain error, and linearity. However, the device is designed to operate over a wide temperature range (-40°C to 125°C), and the datasheet provides temperature-related specifications and graphs to help designers account for these effects.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from external noise sources. Additionally, consider using a low-noise voltage reference and a high-quality clock source.
The maximum clock frequency for the DAC716PB is 40 MHz, but this can be limited by the specific application and the quality of the clock source. It's recommended to use a clock frequency that is at least 10 times the Nyquist frequency of the desired output signal.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DAC716PB Overview

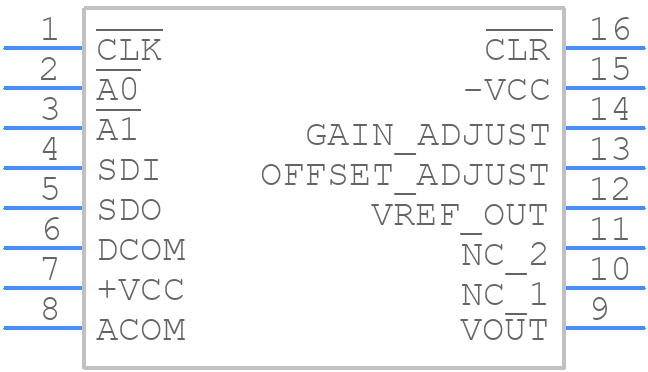

Use the download button to access the DAC716PB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC71,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
