- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DAC716PK
- Part Number DAC716PK
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N (R-PDIP-T16)
- Released Date Dec 13, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DAC716PK Details
-
Manufacturer Part Number:
DAC716PK
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Date Of Intro:
1996-01-01
-
Manufacturer:
Texas Instruments
DAC716PK Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supply (DVDD). This ensures that the analog and digital sections of the device are powered up correctly.
-
The DAC716PK has a rail-to-rail output stage, but the output voltage range is limited to VSS + 0.1V to VDD - 0.1V. To ensure accurate output voltage, it's recommended to use an external amplifier or buffer to adjust the output voltage range if necessary.
-
Clock jitter can affect the DAC716PK's performance by introducing noise and distortion in the output signal. It's recommended to use a low-jitter clock source and to minimize clock jitter to ensure optimal performance.
-
To implement a bipolar output voltage range, you can use an external amplifier or inverter to shift the output voltage range. For example, you can use an op-amp in an inverting configuration to shift the output voltage range from 0 to VDD to -VDD/2 to VDD/2.
-
The recommended layout and routing for the DAC716PK involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-impedance power supply and to decouple the power supply lines.
Trust Checks
Community Provided
System Verified
Community Approved
DAC716PK Overview

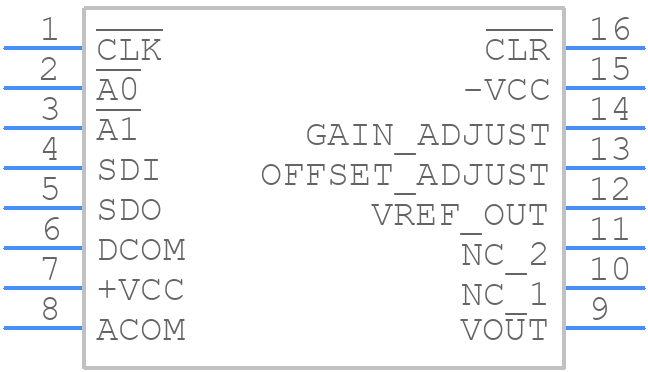

Use the download button to access the DAC716PK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC71,
or try a keyword search, such as Digital to Analog Converters
