DAC716UK/1K - Texas Instruments

Description: IC 16-BIT D/A CONVERTER 16-SOIC

Download DAC716UK/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

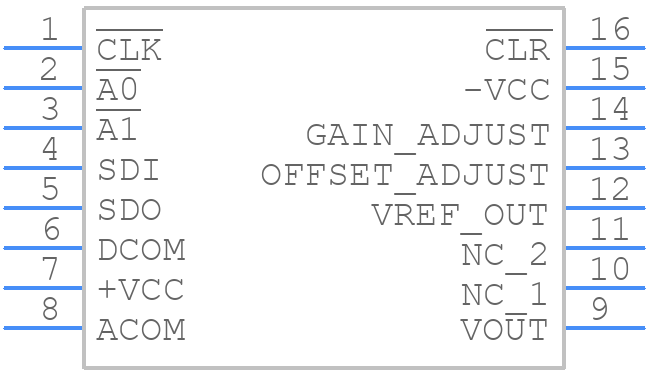

DAC716UK/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC716UK/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
DAC716UK/1K - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

DAC716UK/1K Details

  • Manufacturer Part Number:

    DAC716UK/1K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

DAC716UK/1K Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures that the internal reference voltage is stable before the digital circuitry is powered up.
  • The output voltage range of the DAC716UK/1K is dependent on the reference voltage (VREF) and the gain setting. The output voltage range can be adjusted by changing the VREF voltage or the gain setting. For example, with a VREF of 2.5V and a gain setting of 1, the output voltage range is 0 to 2.5V.
  • The settling time of the DAC716UK/1K is typically around 10-15 microseconds, but this can vary depending on the output load, capacitance, and the desired accuracy. It's recommended to consult the datasheet and application notes for more information on settling time and output filtering.
  • Yes, the DAC716UK/1K can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage (VREF). This can be useful in applications where the output voltage needs to track changes in the reference voltage.
  • The DAC716UK/1K has a 16-bit parallel digital interface, which can be clocked at up to 50 MHz. The interface is compatible with most microcontrollers and FPGAs. It's recommended to consult the datasheet and application notes for more information on digital interface timing and protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC716UK/1K Overview

Use the download button to access the DAC716UK/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC71, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
