Technical Content
Part Image

DAC7541AJP - Texas Instruments

Description: Digital to Analog Converters - DAC 12-Bit CMOS 4-Quad Multiplying Cnvtr

Download DAC7541AJP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

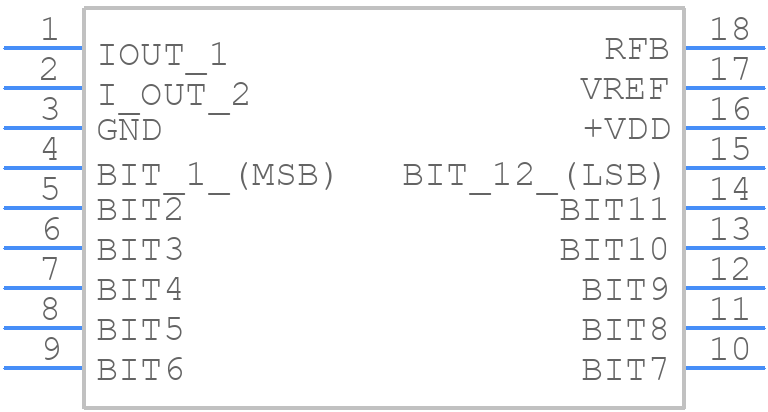

DAC7541AJP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7541AJP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N(R-PDIP-T18)
click to zoom
3D Models
DAC7541AJP - Texas Instruments - 3D model - Dual-In-Line Packages - N(R-PDIP-T18)
click to zoom

DAC7541AJP Details

  • Manufacturer Part Number:

    DAC7541AJP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-18

  • Pin Count:

    18

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e4

  • Length:

    22.48 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DAC7541AJP Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7541AJP is 5mA. This is not explicitly stated in the datasheet, but it can be inferred from the output impedance and voltage range specifications.
  • To ensure monotonicity of the DAC output, it is recommended to use a high-quality external voltage reference and to follow proper PCB layout and decoupling practices. Additionally, the DAC7541AJP has a built-in monotonicity feature that can be enabled by setting the appropriate configuration bits.
  • The settling time of the DAC7541AJP is typically around 10-15 microseconds, but this can vary depending on the output voltage range, load capacitance, and other factors. It is recommended to consult the datasheet and application notes for more detailed information.
  • Yes, the DAC7541AJP can be used with a single-supply voltage, but the output voltage range will be limited to 0-VCC. It is recommended to use a voltage divider or other level-shifting circuitry to achieve a bipolar output voltage range if necessary.
  • The DAC7541AJP can be interfaced with a microcontroller using a serial interface such as SPI or I2C. The specific interface protocol and pin connections will depend on the microcontroller and system design requirements. It is recommended to consult the datasheet and application notes for more detailed information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7541AJP Overview

Use the download button to access the DAC7541AJP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
