DAC7541AJPG4 - Texas Instruments

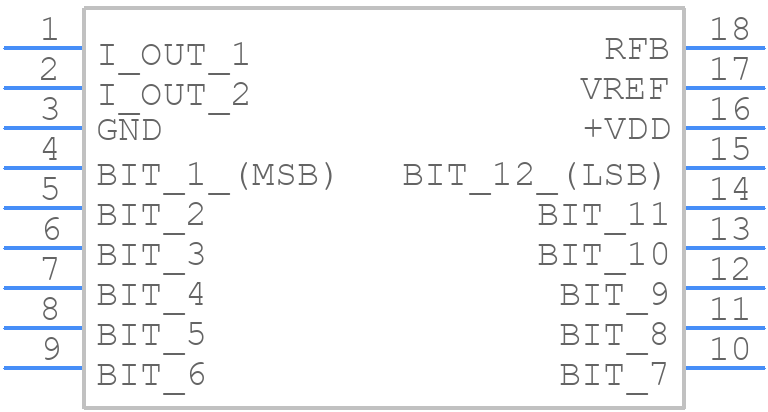

DAC7541AJPG4 Details

• Manufacturer Part Number:

  DAC7541AJPG4

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  GREEN, PLASTIC, DIP-18

• Pin Count:

  18

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e4

• Length:

  22.48 mm

• Linearity Error-Max (EL):

  0.0244%

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Settling Time-Nom (tstl):

  0.6 µs

• Supply Current-Max:

  2 mA

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
