DAC7551ZTDRNRQ1 - Texas Instruments

Description: Automotive 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter

Download DAC7551ZTDRNRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

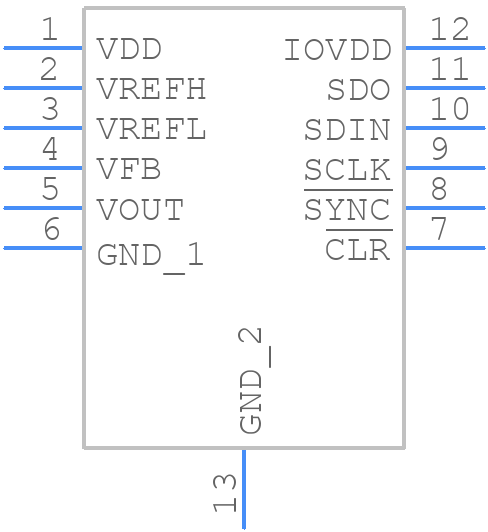

Symbol
DAC7551ZTDRNRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7551ZTDRNRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRN(R-PDSO-N12)
click to zoom
3D Models
DAC7551ZTDRNRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRN(R-PDSO-N12)
click to zoom

DAC7551ZTDRNRQ1 Details

  • Manufacturer Part Number:

    DAC7551ZTDRNRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DAC7551ZTDRNRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short and direct traces for the analog output, and avoid routing digital signals near the analog output.
  • The DAC7551ZTDRNRQ1 has an internal calibration circuit that is performed during power-up. No external calibration is required. However, if the user wants to perform a manual calibration, it can be done by writing to the calibration registers. Refer to the datasheet for more information.
  • The maximum output current of the DAC7551ZTDRNRQ1 is 5mA. If the output current exceeds this limit, the output voltage may droop or become unstable. Ensure that the output is properly terminated and that the load current is within the specified limit.
  • The DAC7551ZTDRNRQ1 has an internal POR and BOR circuit that resets the device during power-up or brown-out conditions. The user can also use external reset signals to reset the device. Ensure that the power supply is stable and within the specified range to avoid unwanted resets.
  • Texas Instruments recommends using a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed close to the power pins of the DAC7551ZTDRNRQ1. Additionally, use a 10nF capacitor to filter the analog supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7551ZTDRNRQ1 Overview

Use the download button to access the DAC7551ZTDRNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
