DAC7553IRGTT - Texas Instruments

Description: 12-Bit, Dual, Ultralow Glitch, Voltage Output Digital to Analog Converter

Download DAC7553IRGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

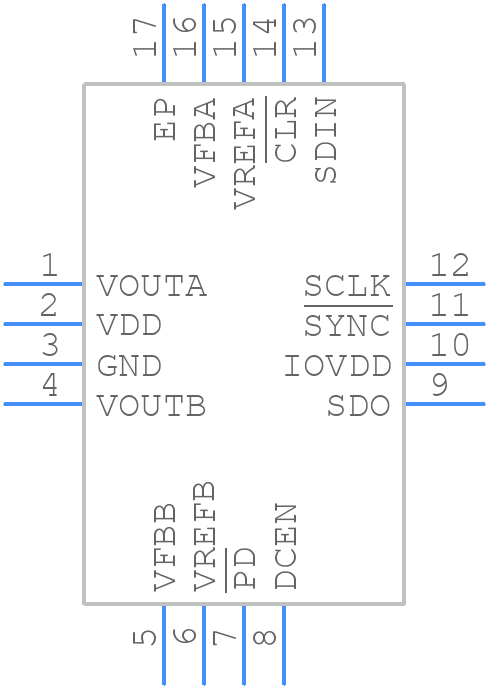

DAC7553IRGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7553IRGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016-C
click to zoom
3D Models
DAC7553IRGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016-C
click to zoom

DAC7553IRGTT Details

  • Manufacturer Part Number:

    DAC7553IRGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    0.44 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC7553IRGTT Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7553IRGTT is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to design your circuit to stay within this limit to avoid damaging the device.
  • To ensure accurate voltage output, make sure to use a stable and low-noise voltage reference, and decouple the VREF pin with a capacitor to ground. Additionally, use a low-pass filter on the output to remove any high-frequency noise.
  • The settling time of the DAC7553IRGTT is approximately 10μs. This is the time it takes for the output voltage to settle to within 1% of its final value after a code change. This is important to consider when designing your system's timing and synchronization.
  • Yes, the DAC7553IRGTT can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the output voltage needs to track changes in the reference voltage.
  • The DAC7553IRGTT has a power-on reset (POR) circuit that resets the device when the supply voltage is below a certain threshold. To handle POR, make sure to add a capacitor to the VCC pin to ensure a smooth power-up sequence, and consider adding a reset circuit to initialize the device after power-up.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7553IRGTT Overview

Use the download button to access the DAC7553IRGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
