A good layout and routing practice for the DAC7554IDGSR involves separating analog and digital grounds, using a solid ground plane, and keeping the analog and digital signal paths separate. Additionally, it's recommended to place the DAC close to the analog-to-digital converter (ADC) and use a low-impedance power supply to minimize noise.
The DAC7554IDGSR does not require calibration. It is a digital-to-analog converter that provides a calibrated output voltage based on the input digital code. However, it's recommended to follow the application notes and datasheet guidelines for proper device operation and to ensure the output voltage is within the specified accuracy.
The DAC7554IDGSR has a recommended operating temperature range of -40°C to 125°C. To ensure proper operation, it's essential to provide adequate heat sinking, avoid overheating, and follow the recommended PCB layout and thermal management guidelines. Additionally, it's recommended to use thermal simulation tools to estimate the device's junction temperature.
To ensure the DAC7554IDGSR meets the required electromagnetic compatibility (EMC) standards, it's essential to follow proper PCB layout and design guidelines, use shielding and filtering techniques, and implement EMI-reducing components such as ferrite beads and capacitors. Additionally, it's recommended to perform EMC testing and simulation to ensure compliance with the required standards.
The DAC7554IDGSR requires a single 2.7V to 5.5V power supply. It's essential to ensure proper power sequencing, with the analog power supply (AVDD) and digital power supply (DVDD) ramping up and down simultaneously. Additionally, it's recommended to use a low-dropout regulator (LDO) or a switching regulator with a low noise output to minimize power supply noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7554IDGSR Overview

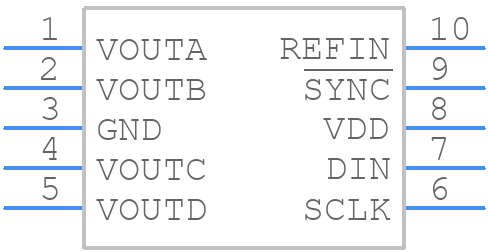

Use the download button to access the DAC7554IDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75,
or try a keyword search, such as Digital to Analog Converters
