DAC7562SDSCR - Texas Instruments

Description: Digital to Analog Converters - DAC 12B,Dual,Lo Pwr Ultra-Lo Glitch DAC

Download DAC7562SDSCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

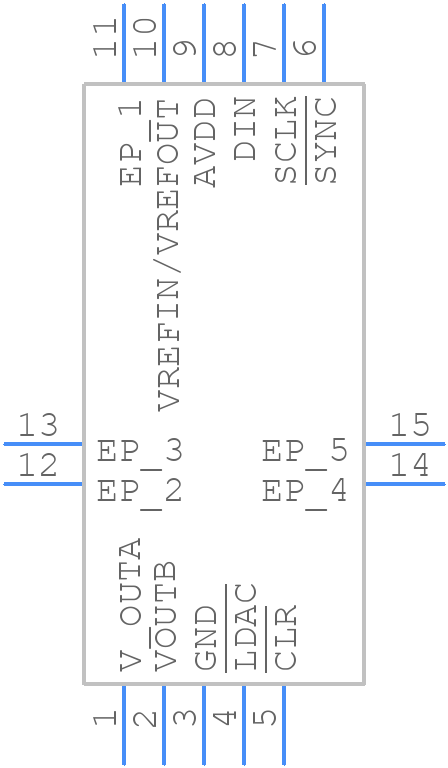

DAC7562SDSCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7562SDSCR - Texas Instruments PCB footprint - Other - Other - DSC (S-PWSON-N10)
click to zoom
3D Models
DAC7562SDSCR - Texas Instruments - 3D model - Other - DSC (S-PWSON-N10)
click to zoom

DAC7562SDSCR Details

  • Manufacturer Part Number:

    DAC7562SDSCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC7562SDSCR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines (VDD and VSS) with suitable capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The DAC7562 can sink or source up to 5 mA of current. However, it is recommended to limit the output current to 3 mA or less to ensure accurate voltage output and to prevent overheating.
  • The DAC7562 can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller sends the digital code to the DAC7562, which then converts it to an analog voltage output. The interface protocol and timing requirements are specified in the datasheet.
  • The settling time of the DAC7562 is typically around 10 μs, but it can vary depending on the output voltage, load capacitance, and other factors. It is essential to ensure that the output has settled to the desired voltage before taking a measurement or using the output in a system.
