The maximum output current of the DAC7563SQDGSRQ1 is 5mA per channel. However, it's recommended to limit the output current to 3mA per channel to ensure accurate voltage output and to prevent overheating.
To ensure accurate voltage output, make sure to use a low-impedance output load, keep the output voltage within the specified range, and use a stable reference voltage. Additionally, consider using an external output buffer amplifier if the output load requires a high current or low impedance.
The settling time of the DAC7563SQDGSRQ1 is typically around 10μs to 15μs, depending on the output voltage range and the load capacitance. However, this can vary depending on the specific application and layout.
Yes, the DAC7563SQDGSRQ1 can be used with a single-supply voltage. However, the output voltage range will be limited to 0V to VCC-1.4V. If a bipolar output voltage range is required, a dual-supply voltage configuration is recommended.
The DAC7563SQDGSRQ1 can be programmed using a 3-wire SPI interface. The device requires a clock signal (SCLK), a chip select signal (CS), and a data signal (SDIN). The SPI protocol is based on a 16-bit word, with the most significant bit (MSB) sent first. Refer to the datasheet for the detailed SPI protocol and timing diagrams.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7563SQDGSRQ1 Overview

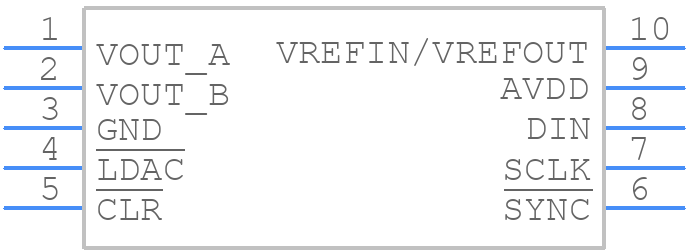

Use the download button to access the DAC7563SQDGSRQ1 schematic symbol, PCB footprint, and 3D model.
