DAC7564ICPWR - Texas Instruments

Description: Digital to Analog Converters - DAC 12B 4Ch Ultra-Low Glitch Vltg Output

Download DAC7564ICPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

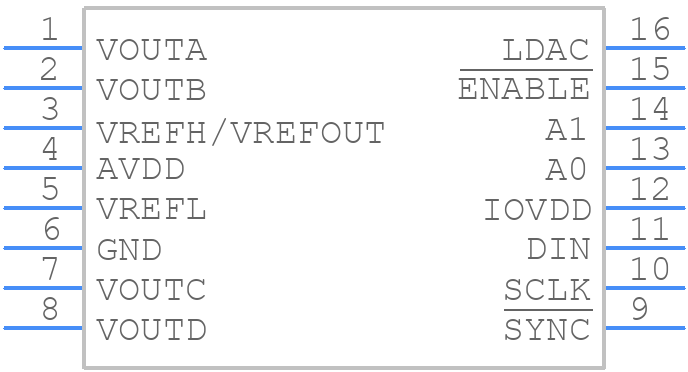

Symbol
DAC7564ICPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7564ICPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
DAC7564ICPWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

DAC7564ICPWR Details

  • Manufacturer Part Number:

    DAC7564ICPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.5005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC7564ICPWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the VDD pin first, followed by the AVDD pin, and then the digital interface pins. This ensures that the internal analog and digital circuits are properly initialized.
  • To ensure accurate voltage output, it is essential to use a high-quality external reference voltage source, and to decouple the AVDD pin with a 10uF capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the DAC7564 is 5mA per channel. Exceeding this limit may cause the output voltage to droop or the device to overheat.
  • To implement a voltage output range other than 0-5V or 0-10V, you can use an external amplifier or attenuator circuit to scale the output voltage. Alternatively, you can use a resistive divider network to achieve the desired output range.
  • The settling time of the DAC7564 is typically around 10us. This means that the output voltage may take up to 10us to stabilize after a code change. In systems where fast settling time is critical, you may need to add additional circuitry to ensure that the output voltage is stable before taking a measurement or performing a subsequent operation.
