DAC7611UB/2K5G4 - Texas Instruments

Description: Digital to Analog Converters - DAC 12-Bit Serial Input

Download DAC7611UB/2K5G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

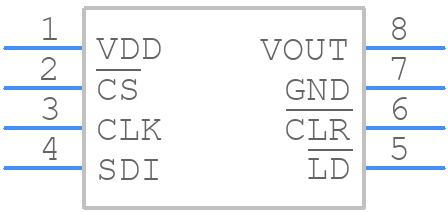

DAC7611UB/2K5G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7611UB/2K5G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
DAC7611UB/2K5G4 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

DAC7611UB/2K5G4 Details

  • Manufacturer Part Number:

    DAC7611UB/2K5G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    4.103 V

  • Analog Output Voltage-Min:

    4.087 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.132 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DAC7611UB/2K5G4 Frequently Asked Questions (FAQs)

  • A unity-gain buffer (e.g., OP07 or OPA27) is recommended to ensure stability and minimize output impedance. This configuration also helps to reduce noise and improve settling time.
  • Use a high-precision voltage reference (e.g., REF5020 or REF5030) and ensure proper PCB layout and thermal management to minimize temperature-related drift. Additionally, consider using a voltage reference with a low temperature coefficient (TC) to reduce drift over temperature.
  • The maximum update rate is 30 MSPS (mega-samples per second), but this can be limited by the interface clock frequency, data transfer rate, and system-level considerations. Ensure that the system can handle the desired update rate to avoid data loss or corruption.
  • The DAC7611UB/2K5G4 uses a 3-wire serial interface (SCLK, SDIN, and SYNC). Ensure proper signal integrity, use a suitable clock frequency (up to 50 MHz), and implement a reliable data transfer protocol to avoid errors or data corruption.
  • Power-on sequencing: VDD should be applied before VREF. Power-down sequencing: VREF should be removed before VDD. Ensure that the power supplies are stable and well-regulated to prevent damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7611UB/2K5G4 Overview

Use the download button to access the DAC7611UB/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC76, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
