DAC7644E/1K - Texas Instruments

Description: Digital to Analog Converters - DAC 16-Bit Quad Voltage Output

Download DAC7644E/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

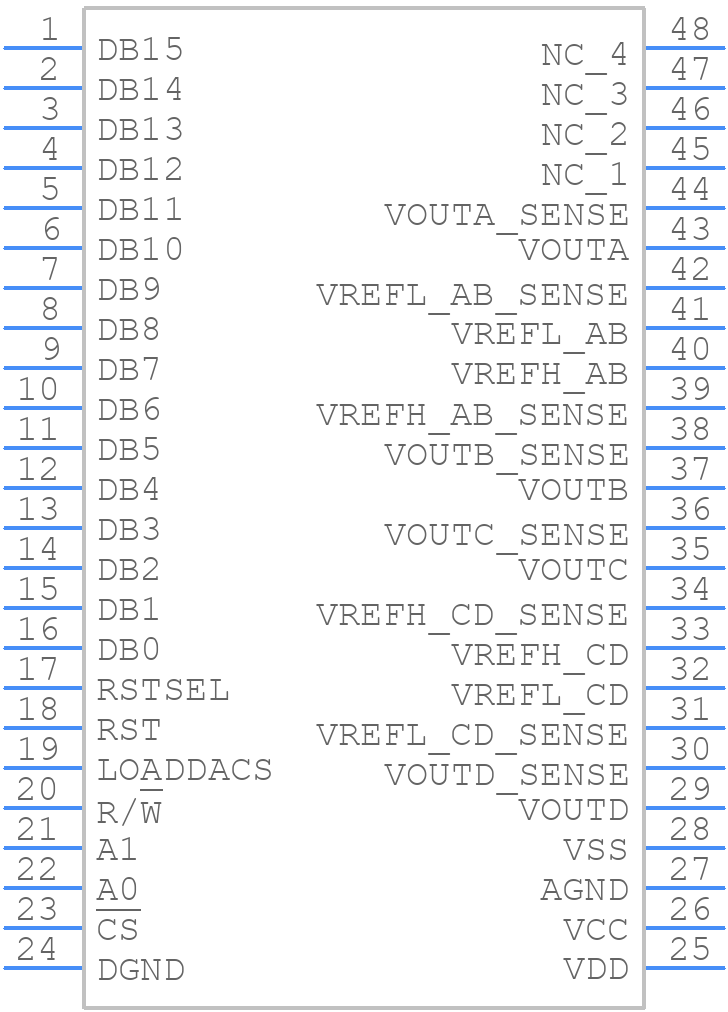

DAC7644E/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7644E/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DL (R-PDSO-G48)
click to zoom
3D Models
DAC7644E/1K - Texas Instruments - 3D model - Small Outline Packages - DL (R-PDSO-G48)
click to zoom

DAC7644E/1K Details

  • Manufacturer Part Number:

    DAC7644E/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    15.875 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    2.79 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.49 mm

DAC7644E/1K Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7644E/1K is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to design your circuit to stay within this limit to avoid damaging the device.
  • To ensure monotonicity, make sure to use a stable voltage reference and a low-noise power supply. Additionally, use a high-quality output filter to reduce noise and ensure a smooth output signal. It's also important to follow the recommended layout and grounding practices to minimize noise coupling.
  • The recommended output capacitor value for the DAC7644E/1K is 10nF to 100nF. This value helps to filter out high-frequency noise and ensures a stable output signal. However, the optimal value may vary depending on your specific application, so some experimentation may be necessary.
  • The DAC7644E/1K has a built-in power-on reset (POR) circuit that resets the device when the power supply voltage is below a certain threshold. To handle the POR, make sure to provide a stable power supply voltage that meets the recommended specifications. You can also use an external POR circuit if needed.
  • The maximum clock frequency for the DAC7644E/1K is 40MHz. However, the recommended clock frequency is 20MHz to ensure reliable operation. Make sure to follow the recommended clocking scheme and layout practices to minimize noise and ensure reliable data transfer.
