The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
To ensure accurate voltage output, it's essential to use a high-precision voltage reference, such as the Texas Instruments REF5025. Additionally, ensure that the output voltage is buffered with an op-amp, such as the OPA333, to prevent loading effects.
The maximum output current of the DAC7731E/1K is 5 mA. Exceeding this current limit may cause damage to the device or affect its accuracy.
To handle the output glitch, use a simple RC filter (e.g., 1 kΩ and 10 nF) at the output of the DAC to filter out the glitch. Alternatively, use a voltage-controlled amplifier or an op-amp to buffer the output and reduce the glitch amplitude.
To minimize noise and ensure accurate operation, keep the analog and digital grounds separate, use a solid ground plane, and route the analog signals away from the digital signals. Additionally, use a low-ESR capacitor (e.g., 10 μF) to decouple the AVCC pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7731E/1K Overview

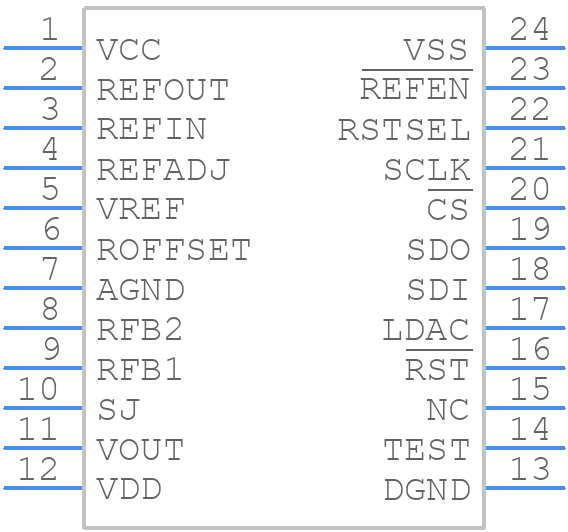

Use the download button to access the DAC7731E/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC77,
or try a keyword search, such as Digital to Analog Converters
