The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly.
To ensure accurate voltage output, it's essential to use a high-quality voltage reference, such as the Texas Instruments REF5025. Additionally, ensure that the output voltage is buffered with an op-amp, such as the OPA333, to prevent loading effects.
The maximum output current of the DAC7821 is 5mA. Exceeding this current may cause damage to the device or affect its accuracy.
To prevent latch-up or damage, ensure that the digital inputs are not driven before the power supplies are stable. Also, use a series resistor (e.g., 1kΩ) to limit the input current and prevent damage from overvoltage or electrostatic discharge.
To minimize noise and ensure accurate performance, use a star-ground topology, keep analog and digital traces separate, and avoid running digital traces near the analog output. Also, use a solid ground plane and decouple the power supplies with 0.1μF and 10μF capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7821IPWR Overview

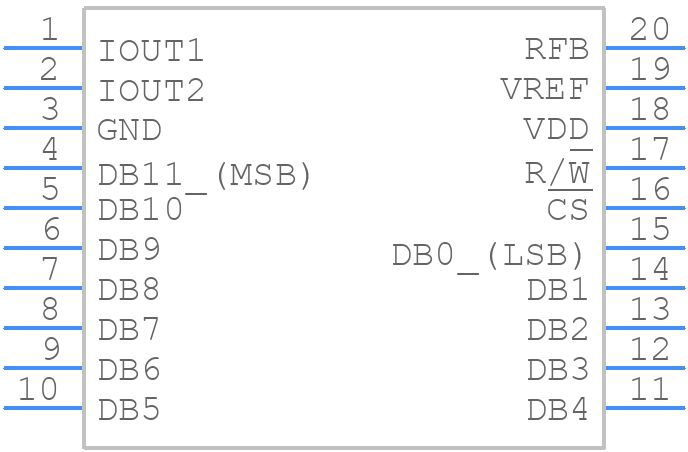

Use the download button to access the DAC7821IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC78,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
