The recommended power-up sequence is to power up the VDD pin first, followed by the VREF pin, and then the digital interface pins (SCLK, SDIN, and SYNC). This ensures proper device operation and prevents potential latch-up conditions.
The output voltage range of the DAC80004IPWR is dependent on the VREF pin voltage. The output voltage range is 0 to VREF. To achieve a specific output voltage range, adjust the VREF pin voltage accordingly. For example, to achieve a 0 to 5V output range, set VREF to 5V.
The maximum data transfer rate for the SPI interface of the DAC80004IPWR is 50 MHz. However, the actual data transfer rate may be limited by the system clock frequency and the specific application requirements.
To ensure accurate DAC output voltage, ensure that the VREF pin is properly decoupled, the analog output is properly filtered, and the digital interface is properly terminated. Additionally, consider using a high-precision voltage reference and a low-noise power supply to minimize noise and drift.
The power consumption of the DAC80004IPWR varies depending on the operating mode. In normal operation, the typical power consumption is around 15 mA. In power-down mode, the typical power consumption is around 1 μA. Refer to the datasheet for more detailed power consumption information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC80004IPWR Overview

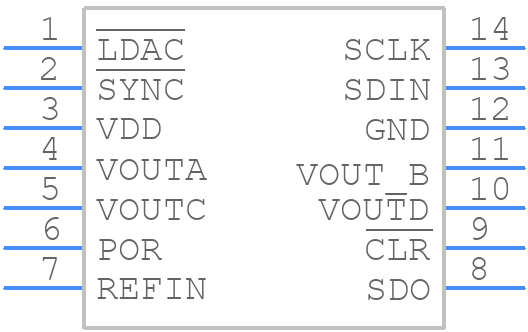

Use the download button to access the DAC80004IPWR schematic symbol, PCB footprint, and 3D model.
