DAC8043A1FSZ - Analog Devices

Description: DAC 1-Ch R-2R 12-Bit 8-Pin SOIC

Download DAC8043A1FSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

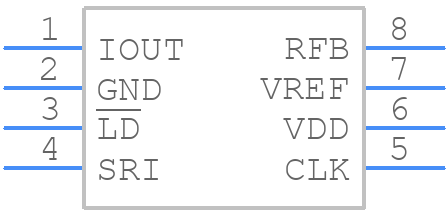

DAC8043A1FSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DAC8043A1FSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8_2020
click to zoom
3D Models
DAC8043A1FSZ - Analog Devices - 3D model - Small Outline Packages - SOIC 8_2020
click to zoom

DAC8043A1FSZ Details

  • Manufacturer Part Number:

    DAC8043A1FSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    1.75 MM HEIGHT, LOW PROFILE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    1 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DAC8043A1FSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and that the DAC outputs are stable.
  • The DAC8043A1FSZ has an output voltage range of 0 to VREF. To ensure accurate output voltages, it is recommended to use an external voltage reference (VREF) that is within the specified range of 2.5V to 5.5V. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The settling time of the DAC8043A1FSZ is typically around 10μs to 15μs, depending on the output voltage range and the load capacitance. This is the time it takes for the output voltage to settle within 1 LSB of the final value after a code change.
  • To minimize noise and glitches, it is recommended to use a low-noise voltage reference, decouple the power supplies with capacitors, and use a low-pass filter on the output. Additionally, the digital inputs should be properly terminated and the clock signal should be clean and stable.
  • The maximum clock frequency that can be used with the DAC8043A1FSZ is 50MHz. However, the actual clock frequency used should be determined by the specific application requirements and the settling time of the DAC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8043A1FSZ Overview

Use the download button to access the DAC8043A1FSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC80, or try a keyword search, such as Digital to Analog Converters
