DAC80501ZDGSR - Texas Instruments

Description: Digital to Analog Converters - DAC True 16-bit, 1-ch, SPI/I2C, voltage-output DAC in WSON package with precision internal reference 10-VSSOP -40 to 125

Download DAC80501ZDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

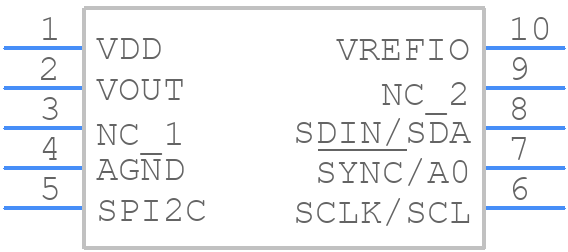

DAC80501ZDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC80501ZDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC80501ZDGSR - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC80501ZDGSR Details

  • Manufacturer Part Number:

    DAC80501ZDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-07-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC80501ZDGSR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines with adequate capacitors. Additionally, ensure that the output load is within the specified range and that the output voltage is not overloaded.
  • The maximum output current of the DAC80501 is 5 mA. Exceeding this current limit may cause device damage or affect the accuracy of the output voltage.
  • During power-up and power-down, it's recommended to keep the digital inputs (SCL and SDA) in a high-impedance state or tied to a fixed logic level to prevent unwanted device operation or latch-up conditions.
  • For optimal performance, it's recommended to follow a star-grounding layout, keep analog and digital signal traces separate, and use a solid ground plane to minimize noise and electromagnetic interference (EMI).
