DAC80502DRXT - Texas Instruments

Description: Digital to Analog Converters - DAC Dual-channel, 1-LSB INL, 16-bit, SPI voltage-output digital-to-analog converter (DAC) 10-WSON -40 to 125

Download DAC80502DRXT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

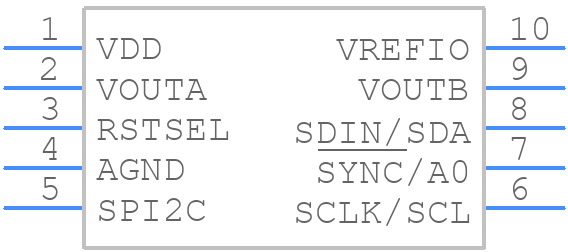

DAC80502DRXT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC80502DRXT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRX0010A
click to zoom
3D Models
DAC80502DRXT - Texas Instruments - 3D model - Small Outline No-lead - DRX0010A
click to zoom

DAC80502DRXT Details

  • Manufacturer Part Number:

    DAC80502DRXT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-12-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

DAC80502DRXT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference (VREF) and to decouple the VREF pin with a capacitor. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum output current of the DAC80502DRXT is 5 mA. Exceeding this current may cause the output voltage to droop or the device to overheat.
  • During power-up and power-down, it is recommended to keep the digital inputs (SCL, SDA, and SYNC) in a high-impedance state or tied to a fixed logic level to prevent unwanted device operation.
  • The SYNC pin is used to synchronize the DAC's output with an external clock signal. This is useful in applications where multiple DACs need to be updated simultaneously or in synchronization with an external event.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC80502DRXT Overview

Use the download button to access the DAC80502DRXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC80, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments
