DAC80508MYZFT - Texas Instruments

Description: True 16-bit, 8-channel, SPI, voltage-output DAC in WCSP package with precision internal reference

Download DAC80508MYZFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

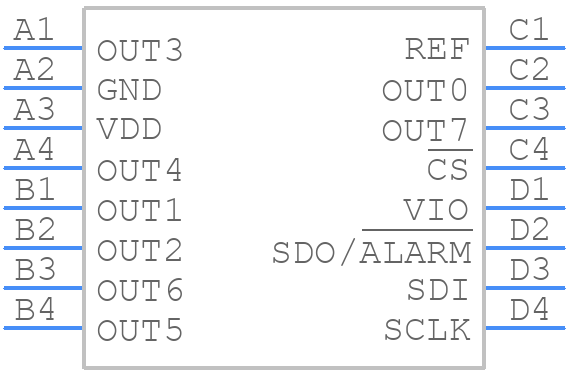

DAC80508MYZFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC80508MYZFT - Texas Instruments PCB footprint - BGA - BGA - YZF0016
click to zoom
3D Models
DAC80508MYZFT - Texas Instruments - 3D model - BGA - YZF0016
click to zoom

DAC80508MYZFT Details

  • Manufacturer Part Number:

    DAC80508MYZFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-08-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.39 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.2 MHz

  • Seated Height-Max:

    0.625 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.39 mm

DAC80508MYZFT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up or damage.
  • The DAC80508 has a rail-to-rail output stage, but the output voltage range is limited to VDD - 0.1V to VDD + 0.1V. Ensure that the output voltage is within this range to avoid clipping or distortion.
  • The DAC80508's performance is affected by temperature, with a typical temperature coefficient of ±1 ppm/°C for the DAC gain error. Ensure that the device is operated within the specified temperature range (−40°C to 125°C) for optimal performance.
  • To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using bypass capacitors, and shielding the device. Additionally, consider using a low-pass filter or a buffer amplifier to further reduce noise.
  • The recommended clock frequency for the DAC80508 is up to 50 MHz, but it can operate at higher frequencies with reduced performance. Ensure that the clock frequency is within the specified range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC80508MYZFT Overview

Use the download button to access the DAC80508MYZFT schematic symbol, PCB footprint, and 3D model.
