The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals (SCLK, SDIN, and SYNC). This ensures proper device operation and prevents potential latch-up conditions.
The DAC81001PFBT has a rail-to-rail output stage, but it's recommended to limit the output voltage range to VDD - 0.5V to VDD + 0.5V to ensure optimal linearity and accuracy. Additionally, consider adding external output buffering or amplification if the output voltage needs to be adjusted or amplified.
The maximum clock frequency for the DAC81001PFBT is 50 MHz, but it's recommended to operate at a lower frequency (e.g., 20-30 MHz) to ensure reliable data transfer and minimize digital noise.
To implement glitch-free code changes, use the LDAC (Load DAC) pin to latch the new data value. This ensures that the output voltage changes smoothly and without glitches. Additionally, consider using a double-buffered architecture to update the DAC output value.
For optimal performance, follow a star-grounding layout, keep analog and digital signals separate, and use short, direct traces for the output and reference voltage connections. Additionally, consider adding decoupling capacitors and a quiet analog power supply to minimize noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC81001PFBT Overview

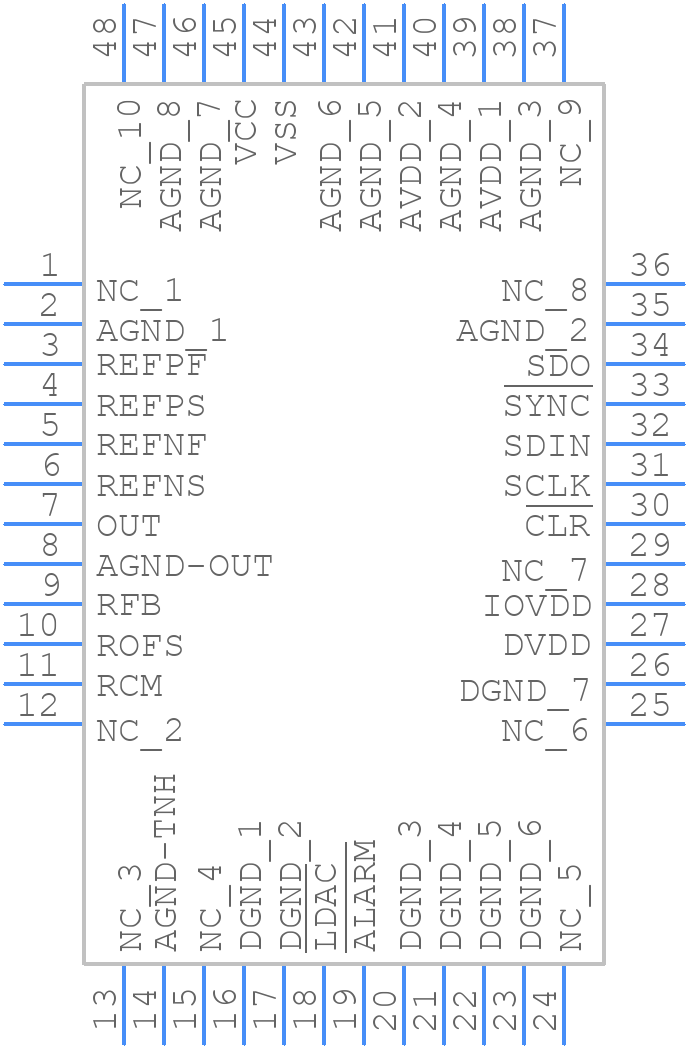

Use the download button to access the DAC81001PFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC81,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
