DAC811BH footprint, schematic symbol and 3D model by Texas Instruments

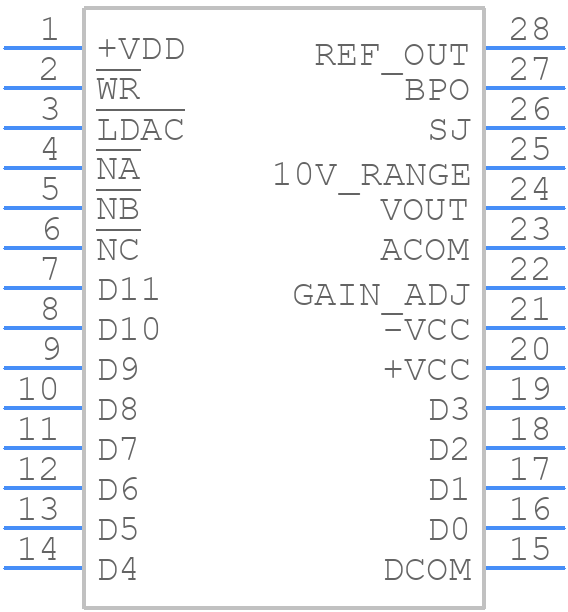

Symbol

click to zoom

PCB Footprints

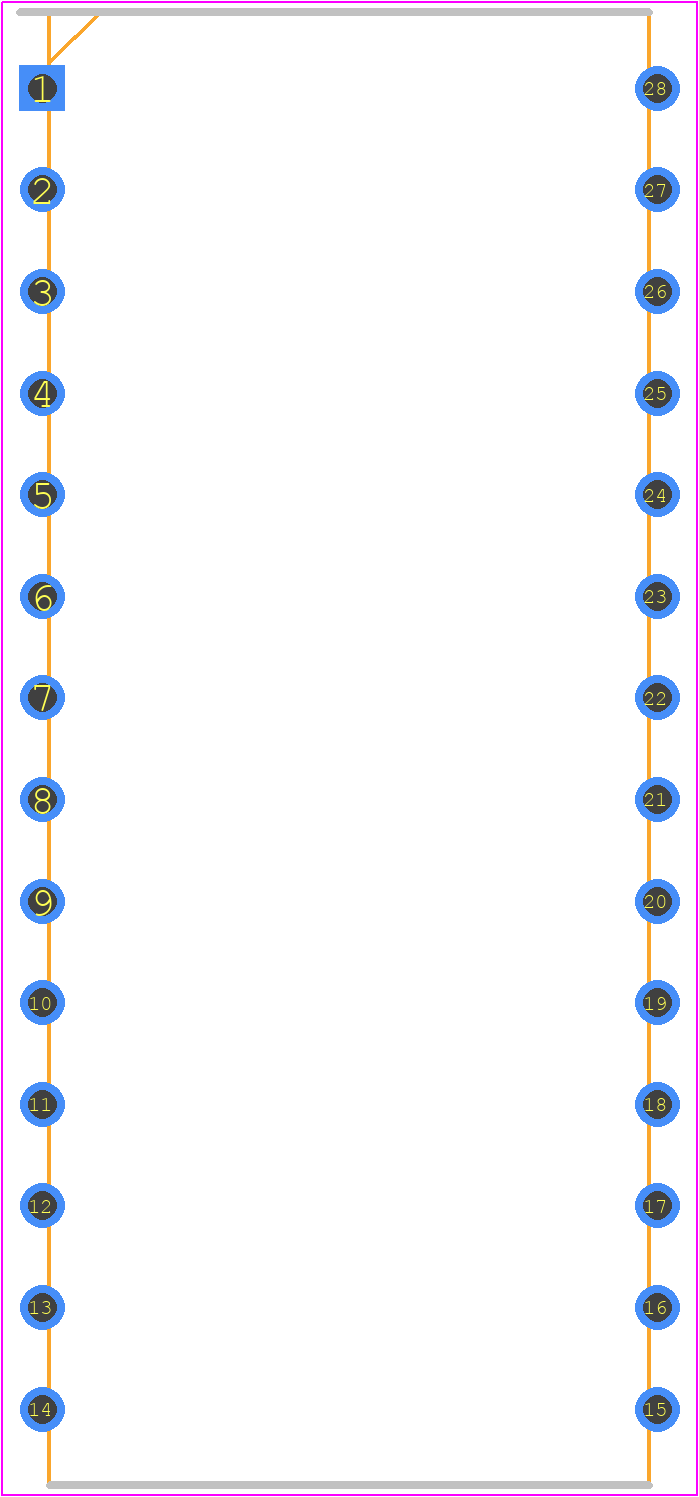

DAC811BH - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JD(R-CDIP-T28)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DAC811BH
Part Number DAC811BH
Manufacturer Texas Instruments
Pin Count 28
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - JD(R-CDIP-T28)
Released Date Jun 8, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DAC811BH Details

Manufacturer Part Number:
DAC811BH
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DIP
Pin Count:
28
ECCN Code:
EAR99
HTS Code:
8542.39.00.40
Manufacturer:
Texas Instruments
YTEOL:
15
Analog Output Voltage-Max:
10 V
Analog Output Voltage-Min:
-10 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format:
PARALLEL, WORD
JESD-30 Code:
R-CDIP-T28
Length:
35.685 mm
Linearity Error-Max (EL):
0.0244%
Negative Supply Voltage-Nom:
-12 V
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Sample Rate:
0.25 MHz
Seated Height-Max:
3.56 mm
Settling Time-Max:
4 µs
Settling Time-Nom (tstl):
4 µs
Supply Voltage-Nom:
12 V
Surface Mount:
NO
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
15.24 mm

DAC811BH Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
The DAC811BH has an output voltage range of 0 to VREF. To ensure accurate output voltage, the reference voltage (VREF) should be connected to a stable voltage source, and the output voltage should be buffered with an op-amp if necessary.
Clock jitter can affect the DAC811BH's performance by introducing noise and distortion in the output signal. To minimize the effect of clock jitter, use a high-quality clock source and ensure that the clock signal is properly filtered and decoupled.
To implement a bipolar output voltage range, connect the output of the DAC811BH to an op-amp configured as an inverting amplifier. This will allow the output voltage to swing both positive and negative with respect to the reference voltage.
The maximum output current of the DAC811BH is 5 mA. Exceeding this current limit can cause damage to the device or affect its accuracy.
