DAC81401PWR - Texas Instruments

Description: • Exceptional performance: 1 LSB INL/DNL (maximum) • Ultra-low glitch energy: 1 nV-s • Wide power supply: – Unipolar mode: +4.5 V to +41.5 V – Bipolar mode: ±4.5 V to ±21.5 V • 14 user-programmable output ranges – ±5 V, ±10 V, ±20 V – 0 V to 5 V, 0 V to 10 V, 0 V to 20 V, 0 V to 40 V – 20% overrange (except ±20 V and 0 V to 40 V) • Integrated 10 ppm/°C, 2.5-V precision reference • Reliability features: – Cyclic redundancy check (CRC) – Fault pin • 50-MHz, 4-wire SPI-compatible interface – Rea

Download DAC81401PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

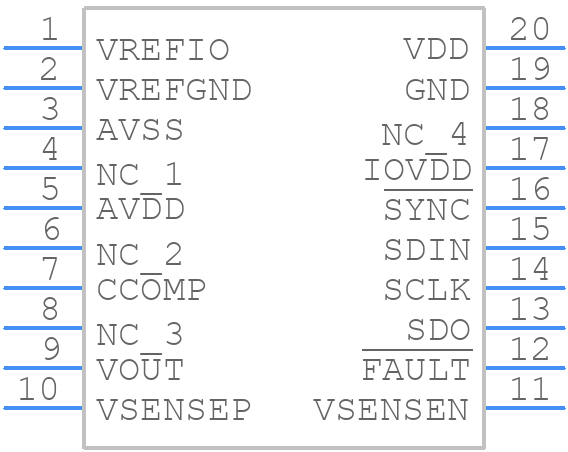

DAC81401PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC81401PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
DAC81401PWR - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

DAC81401PWR Details

  • Manufacturer Part Number:

    DAC81401PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    20 V

  • Analog Output Voltage-Min:

    -20 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC81401PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the DAC81401PWR evaluation module user's guide (SLAU445). It's essential to follow this guide to minimize noise and ensure optimal performance.
  • To achieve a bipolar output, you can use an external op-amp to level-shift and amplify the output of the DAC81401PWR. Texas Instruments provides an example circuit in the DAC81401PWR datasheet (SLAS634).
  • The maximum update rate of the DAC81401PWR is 1 MSPS. To achieve this rate, you need to use the SPI interface and ensure that the clock frequency is at least 20 MHz. Additionally, you should minimize the time between consecutive writes to the DAC register.
  • It's essential to follow proper power supply decoupling and bypassing techniques. Texas Instruments recommends using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed as close as possible to the power pins of the DAC81401PWR.
  • The DAC81401PWR's performance is affected by temperature, with a typical temperature coefficient of ±3 ppm/°C. To compensate for temperature effects, you can use an external temperature sensor and adjust the DAC output accordingly. Alternatively, you can use a temperature-compensated voltage reference.
