- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DAC81404RHBR
- Part Number DAC81404RHBR
- Manufacturer Texas Instruments
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RHB0032E
- Released Date Jan 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DAC81404RHBR Details
-
Manufacturer Part Number:
DAC81404RHBR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Date Of Intro:
2020-11-10
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Analog Output Voltage-Max:
20 V
DAC81404RHBR Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
-
The output voltage settling time can be minimized by using a low-pass filter at the output, and by ensuring that the output load is properly terminated. Additionally, the DAC81404RHBR has a built-in output slew rate control feature that can be used to slow down the output transition and reduce settling time.
-
The maximum output current that the DAC81404RHBR can provide is 25mA. However, it's recommended to limit the output current to 10mA or less to ensure reliable operation and to prevent overheating.
-
The DAC81404RHBR has a built-in calibration feature that can be used to trim the offset and gain errors. The calibration process involves applying a specific input code and measuring the output voltage, and then adjusting the internal calibration registers to achieve the desired output voltage.
-
The recommended layout and routing for the DAC81404RHBR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the output traces. Additionally, it's recommended to use a low-noise power supply and to decouple the power pins with capacitors.
Trust Checks
Community Provided
System Verified
Community Approved
DAC81404RHBR Overview

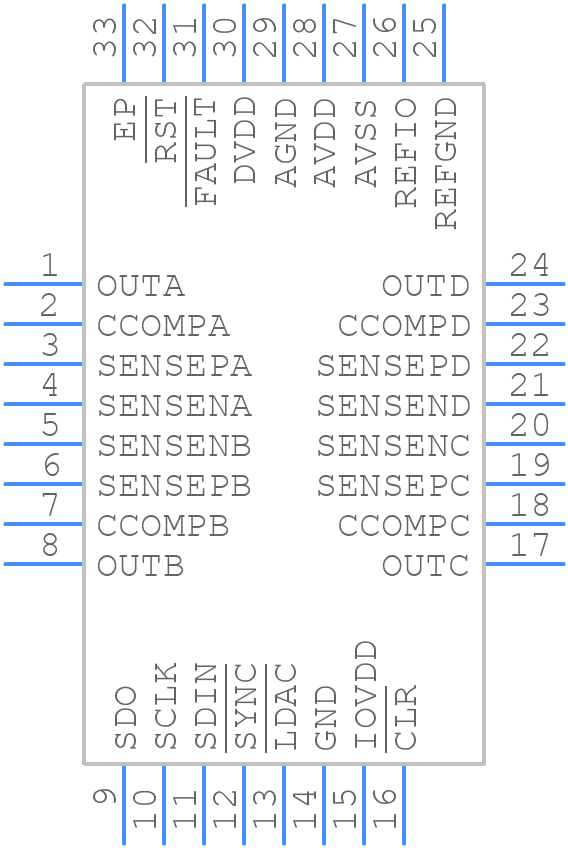

Use the download button to access the DAC81404RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC81,
or try a keyword search, such as Digital to Analog Converters
