DAC82001DRXR - Texas Instruments

Description: Digital to Analog Converters - DAC One-channel, 16-bit, low-glitch-noise, unbuffered-voltage-output digital-to-analog converter (DAC)

Download DAC82001DRXR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

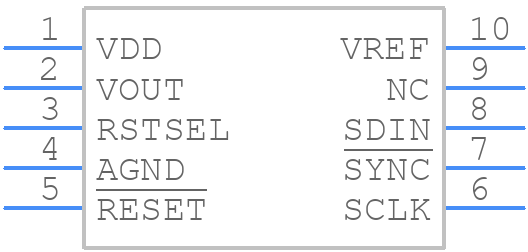

DAC82001DRXR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC82001DRXR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRX0010A
click to zoom
3D Models
DAC82001DRXR - Texas Instruments - 3D model - Small Outline No-lead - DRX0010A
click to zoom

DAC82001DRXR Details

  • Manufacturer Part Number:

    DAC82001DRXR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Linearity Error-Max (EL):

    0.003051%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.5 mm

DAC82001DRXR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage range of the DAC82001DRXR is dependent on the VREF input voltage. The output voltage range is 0 to VREF. Ensure that the VREF voltage is set according to the desired output voltage range, and that the output voltage is within the specified range to avoid saturation or clipping.
  • Clock jitter can affect the DAC82001DRXR's performance by introducing noise and distortion in the output signal. It is recommended to use a low-jitter clock source and to follow proper PCB layout and design practices to minimize clock jitter.
  • To ensure accurate output voltage levels, ensure that the VREF input voltage is accurate and stable, and that the output voltage is properly filtered to remove any noise or ripple. Additionally, calibrate the DAC82001DRXR according to the datasheet recommendations to minimize any offset or gain errors.
  • The maximum output current capability of the DAC82001DRXR is 10 mA. Ensure that the output current is within this limit to avoid overheating or damage to the device.
