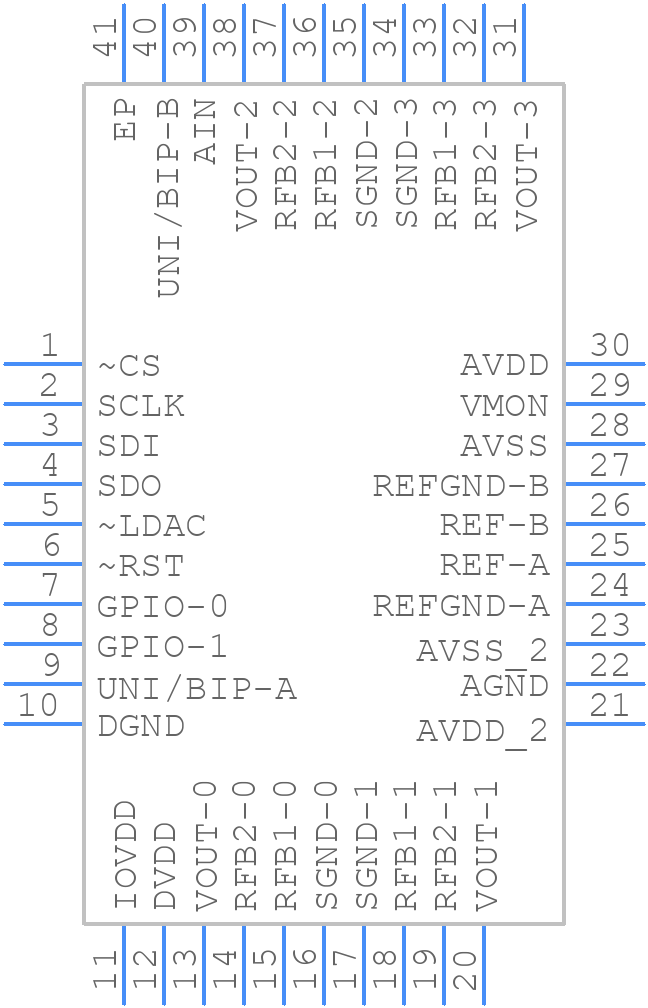

DAC8234SRHAR - Texas Instruments

DAC8234SRHAR Details

• Manufacturer Part Number:

  DAC8234SRHAR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  40

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Output Voltage-Max:

  15 V

• Analog Output Voltage-Min:

  -15 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY, 2'S COMPLEMENT BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-PQCC-N40

• JESD-609 Code:

  e4

• Length:

  6 mm

• Linearity Error-Max (EL):

  0.0031%

• Moisture Sensitivity Level:

  2

• Negative Supply Voltage-Nom:

  -16.5 V

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC40,.24SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.125 MHz

• Seated Height-Max:

  1 mm

• Settling Time-Max:

  6 µs

• Settling Time-Nom (tstl):

  6 µs

• Supply Current-Max:

  16 mA

• Supply Voltage-Nom:

  16.5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6 mm
