DAC8411IDCKRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 16B Sgl Ch DAC w/SPI

Download DAC8411IDCKRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

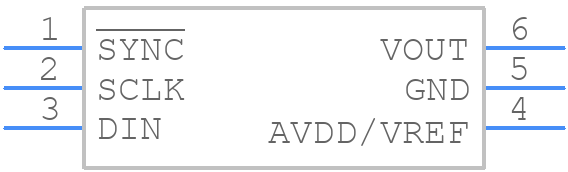

DAC8411IDCKRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8411IDCKRG4 - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DCK (R-PDSO-G6)
click to zoom
3D Models
DAC8411IDCKRG4 - Texas Instruments - 3D model - SOT23 (6-Pin) - DCK (R-PDSO-G6)
click to zoom

DAC8411IDCKRG4 Details

  • Manufacturer Part Number:

    DAC8411IDCKRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SC-70, 6 PIN

  • Pin Count:

    6

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

DAC8411IDCKRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise voltage reference (VREF), and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp if it's not being used to drive a high-impedance load.
  • The maximum output current of the DAC8411 is 5mA. Exceeding this current limit can cause the output voltage to droop or the device to overheat.
  • To minimize output glitches during power-up or code changes, it's recommended to use a soft-start circuit or a glitch-reduction capacitor (e.g., 10nF) in series with the output. This helps to filter out any high-frequency transients and ensures a smooth output transition.
  • To minimize noise and ensure accurate operation, it's recommended to follow a star-ground layout, keep the analog and digital grounds separate, and use short, direct traces for the VREF and output pins. Additionally, avoid running digital signals near the analog signals to prevent noise coupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8411IDCKRG4 Overview

Use the download button to access the DAC8411IDCKRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC84, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
