DAC8501E/250G4 - Texas Instruments

Description: TEXAS INSTRUMENTS - DAC8501E/250G4 . - 16BIT COST DAC, SMD, 8501, MSOP8

Download DAC8501E/250G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

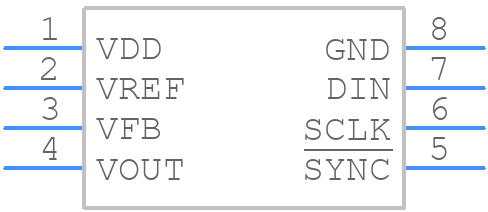

DAC8501E/250G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8501E/250G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
DAC8501E/250G4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

DAC8501E/250G4 Details

  • Manufacturer Part Number:

    DAC8501E/250G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.098%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.093 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8501E/250G4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
  • To ensure accurate voltage output, it is essential to use a high-quality voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the DAC8501E/250G4 is 5 mA. Exceeding this current limit can cause the output voltage to droop or the device to overheat.
  • To implement a voltage output range other than 0-5V, you can use an external amplifier or resistive divider network to scale the output voltage. Alternatively, you can use a different voltage reference (VREF) to change the output voltage range.
  • The settling time of the DAC8501E/250G4 is typically around 10-15 μs. This means that the output voltage may take some time to stabilize after a code change. In system design, you should ensure that the DAC output is not sampled or used until the settling time has elapsed to ensure accurate results.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8501E/250G4 Overview

Use the download button to access the DAC8501E/250G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC85, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
