DAC8512EPZ - Analog Devices

Description: +5V, Serial Input Complete 12-Bit DAC

Download DAC8512EPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

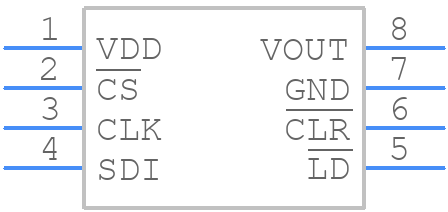

DAC8512EPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DAC8512EPZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DAC8512EPZ
click to zoom
3D Models
DAC8512EPZ - Analog Devices - 3D model - Dual-In-Line Packages - DAC8512EPZ
click to zoom

DAC8512EPZ Details

  • Manufacturer Part Number:

    DAC8512EPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.095 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    COMPLEMENTARY OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DAC8512EPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly initialized and avoids any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to use a high-quality voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the DAC8512EPZ is 5 mA. Exceeding this current limit can cause the output voltage to droop or the device to overheat.
  • The digital input signals should be driven with a low-impedance source, and the input voltage levels should be within the specified range (typically 0 to VDD). It is also recommended to use a series resistor to limit the input current and prevent damage to the device.
  • The thermal shutdown temperature of the DAC8512EPZ is typically around 150°C. If the device temperature exceeds this limit, the output will be disabled to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8512EPZ Overview

Use the download button to access the DAC8512EPZ schematic symbol, PCB footprint, and 3D model.
