DAC8531IDRBR - Texas Instruments

Description: Digital to Analog Converters - DAC Lo-Pwr R-to-R Out 16-Bit Serial Input

Download DAC8531IDRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

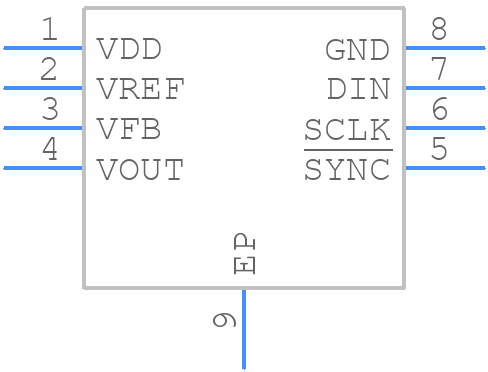

DAC8531IDRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8531IDRBR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B
click to zoom
3D Models
DAC8531IDRBR - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B
click to zoom

DAC8531IDRBR Details

  • Manufacturer Part Number:

    DAC8531IDRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.098%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.093 MHz

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8531IDRBR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
  • The DAC8531 has a rail-to-rail output stage, but the output voltage range is limited to VDD - 0.1V to VREF + 0.1V. Ensure that the output voltage is within this range to avoid output stage saturation and ensure accurate DAC operation.
  • Clock jitter can affect the DAC8531's performance by introducing noise and distortion in the output signal. It is recommended to use a low-jitter clock source and to keep the clock signal path as short as possible to minimize jitter effects.
  • To implement a bipolar output configuration, connect the output of the DAC8531 to an op-amp configured as an inverting amplifier. This will allow the DAC to generate a bipolar output voltage range. Consult the datasheet and application notes for more information.
  • To minimize digital noise and ensure reliable operation, it is recommended to keep the digital interface signals (SCLK, SDIN, and SYNC) short and away from analog signals. Use a ground plane and decoupling capacitors to reduce noise and ensure signal integrity.
