DAC8532IDGKG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - DAC8532IDGKG4 - Digital to Analogue Converter, 16 bit, 93 kSPS, Serial, 2.7V to 5.5V, MSOP, 8 Pins

Download DAC8532IDGKG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

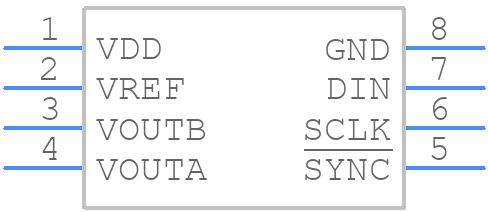

DAC8532IDGKG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8532IDGKG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
DAC8532IDGKG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

DAC8532IDGKG4 Details

  • Manufacturer Part Number:

    DAC8532IDGKG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0987%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.093 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8532IDGKG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time can be minimized by using a capacitor (typically 10nF to 100nF) between the output pin and GND. This helps to filter out high-frequency noise and reduce settling time. Additionally, the DAC8532 has a built-in output buffer that helps to reduce settling time.
  • The maximum output current that the DAC8532 can drive is 5mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • To ensure accurate output voltage levels when using an external reference voltage, make sure to buffer the reference voltage with a low-noise, high-impedance buffer amplifier. This helps to reduce noise and ensure a stable reference voltage.
  • To minimize noise and ensure accurate operation, it is recommended to follow a star-grounding layout, keep analog and digital signals separate, and use a solid ground plane. Additionally, place the DAC8532 close to the analog-to-digital converter (ADC) or other sensitive analog circuits to minimize noise coupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8532IDGKG4 Overview

Use the download button to access the DAC8532IDGKG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC85, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
