The maximum output current of the DAC8534IPWG4 is 5mA per channel. However, it's recommended to limit the output current to 3mA per channel to ensure accurate voltage output and to prevent overheating.
To ensure accurate voltage output, make sure to use a low-impedance output load, keep the output voltage within the specified range, and use a stable reference voltage. Additionally, consider using an external output buffer amplifier if the output current exceeds 3mA per channel.
The settling time of the DAC8534IPWG4 is typically around 10μs to 15μs, depending on the output voltage and load conditions. However, this can vary depending on the specific application and layout.
Yes, the DAC8534IPWG4 can be used with a single-supply voltage. However, the output voltage range will be limited to 0V to VCC-1.4V. If a bipolar output voltage is required, a dual-supply voltage configuration is recommended.
The DAC8534IPWG4 can be programmed using a 3-wire SPI interface. The device requires a 16-bit data word, with the most significant bit (MSB) being the command bit, followed by 12 bits of data, and 3 bits of don't-care. Refer to the datasheet for the specific SPI protocol and timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8534IPWG4 Overview

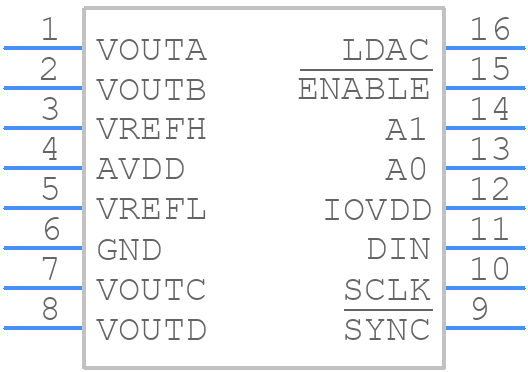

Use the download button to access the DAC8534IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC85,
or try a keyword search, such as Digital to Analog Converters
