DAC8551IADGKRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 16B Ultralow Glitch Vltg Output DAC

Download DAC8551IADGKRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

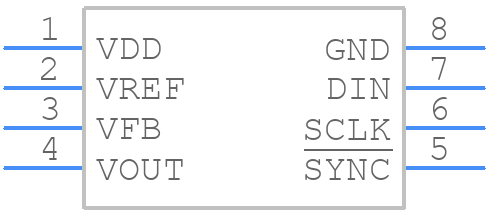

DAC8551IADGKRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8551IADGKRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
DAC8551IADGKRG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

DAC8551IADGKRG4 Details

  • Manufacturer Part Number:

    DAC8551IADGKRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    VSSOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8551IADGKRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface (SCL and SDA). This ensures proper device operation and prevents potential latch-up conditions.
  • The DAC8551 has an output voltage range of 0 to VREF. To ensure accurate output voltage, the reference voltage (VREF) should be set to a value that is within the specified range (2.5V to 5.5V). Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum clock frequency for the I2C interface of the DAC8551 is 400 kHz. Exceeding this frequency may result in communication errors or device malfunction.
  • The DAC8551 has a power-down mode that can be enabled by writing a specific code to the control register. In power-down mode, the device consumes minimal power and the output voltage is high-impedance. Refer to the datasheet for the specific code and implementation details.
  • The thermal shutdown temperature of the DAC8551 is typically 150°C. If the device temperature exceeds this value, it will shut down to prevent damage. The device will automatically restart when the temperature drops below 140°C.
